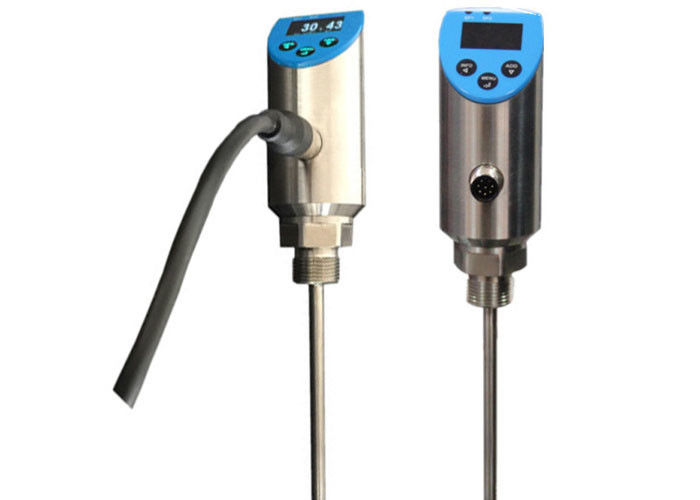

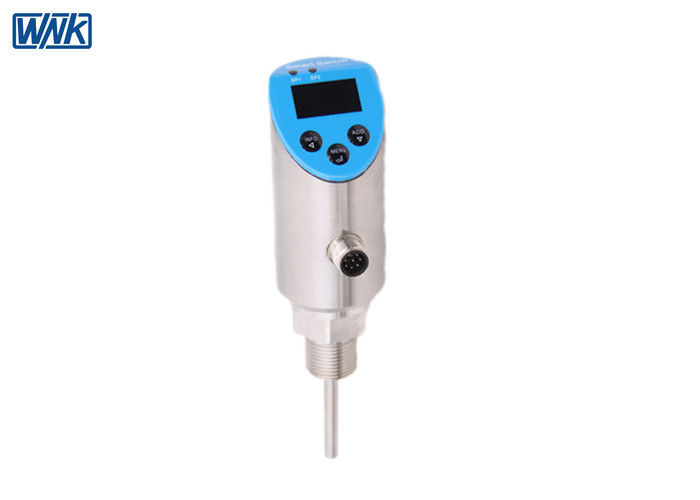

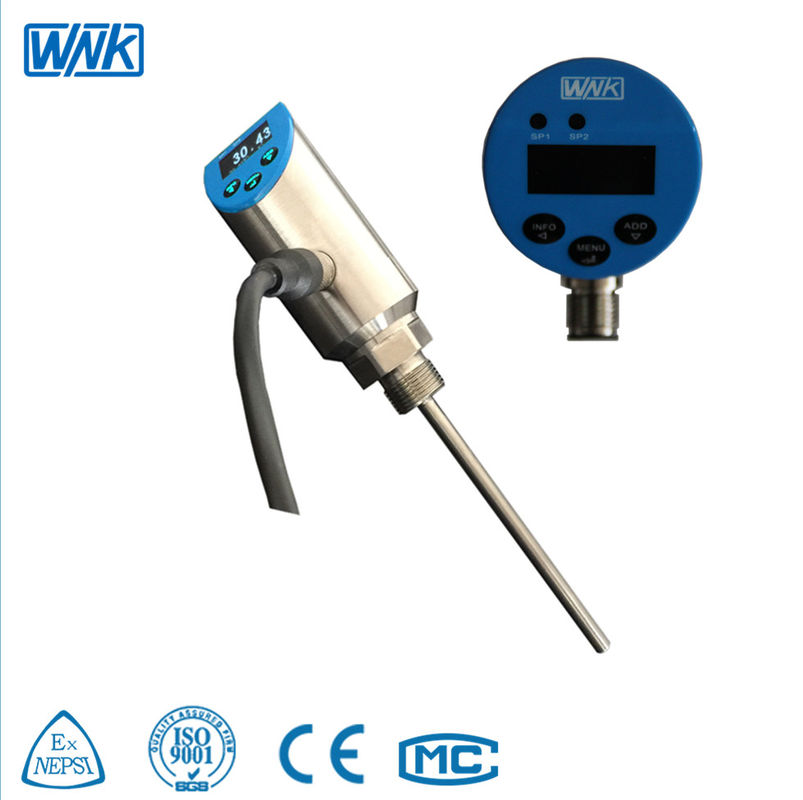

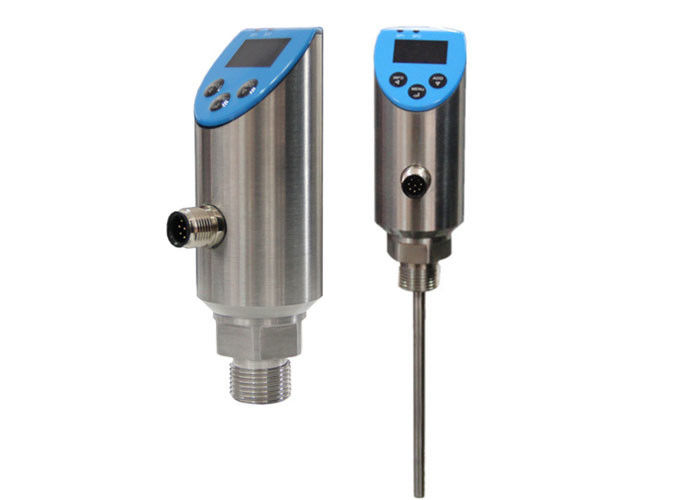

High Accuracy Automation Control Digital Temperature Switch 2PNP 4~20mA Modbus Output

2 wire temperature transmitter

pump control switch

محل منبع:

هیفی، CN

نام تجاری:

WNK

گواهی:

SGS, ISO9001:2015

شماره مدل:

STS

تماس با ما

درخواست نقل قول

High Accuracy Automation Control Digital Temperature Switch 2PNP 4~20mA Modbus Output

Product Details

محدوده دما:

-50~-40C ... 260C

ورودی:

PT100، PT1000

اتصال فرآیند:

M12 5Pin، 8Pin، دیگر

خروجی قیاسی:

4-20 میلی آمپر

خروجی دیجیتال:

PNP، NPN Modbus

دقت دما:

0.5 ٪ FS

مسکن:

304SS، 316L

برجسته کردن:

2 wire temperature transmitter

pump control switch

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

5000 PCS در ماه

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

بهترین قیمت رو بدست بیار

OLED Display Type Electronic Digital Temperature Switch And Transmitter

بهترین قیمت رو بدست بیار

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

بهترین قیمت رو بدست بیار

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

High Accuracy Industrial Automation Control Electronic Digital Temperature Switch 2PNP 4~20mA Modbus Output

Temperature switches are used in a variety of industrial and technical processes. If a preset temperature is reached, then the temperature switch opens or closes a corresponding switch contact.

WNK Smart Temperature Switch (STS ) supports PT100 or PT1000, it is with high measuring accuracy of 0.5℃. STS offers various functions including switch delay, switch point settable, display environment temperature, housing and display turnable and rotatable.

Applications:

Machine tools
Hydraulics
Coolant and lubrication systems
Machine building

Special Features

Easily-readable, robust display
Intuitive and fast setup
Easy and flexible mounting configurations
Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS

Technical Chart

Product name	Electronic Smart Temperature Switch
Measuring range	-50...260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s
Switching motion mode	Delay or windows mode
Analog signal output and max ohmic load RL	Current output 0/4...20mA, 20...4mA RL≤0.5k
Analog signal output and max ohmic load RL	Voltage output 0...5/10v, 5/10...0v RL>10k
Screen display	OLED
Menu language	Chinese and English
Switch indicating	2 Red LED
Displaying units	ºC,ºF,K
Buttons	3 blue back-lighted touch buttons
Supplementary variables displaying	Environment temperature, analog output value, max peak value,mini peak value
Supplementary variables displaying way	Fixed displaying or switch display by INFO button
Working temperature	-30-80ºC
Storage temperature	-40ºC~80ºC
Electromagnetism compatible	GB/T 17626.2/3/4-2006
shock resistance	≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
vibration resistance	≤50g/11ms(IEC 60068-2-27-2008)
Protection class	IP65
