Nbr Sealing M12 Pt100 Water Pump Temperature Switch

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

محل منبع:

هیفی، CN

نام تجاری:

WNK

گواهی:

شماره مدل:

STS

تماس با ما

درخواست نقل قول

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

Product Details

محدوده دما:

-50...200C~260C

ورودی:

PT100، PT1000

اتصال فرآیند:

G 1/2 M12 (5 پین، 8 پین)

خروجی قیاسی:

4-20 میلی آمپر

خروجی دیجیتال:

PNP ، NPN

دقت آنالوگ:

0.5 ٪ FS

آب بندی:

NBR

دمای کاری:

-30-80 درجه سانتیگراد

نمایش:

OLED

برجسته کردن:

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

5000 PCS در ماه

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

بهترین قیمت رو بدست بیار

OLED Display Type Electronic Digital Temperature Switch And Transmitter

بهترین قیمت رو بدست بیار

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

بهترین قیمت رو بدست بیار

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

PT100 PT1000 Temperature Switch Water Pump Temperature Switch

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Feature:

Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
Switching points settable
Analog output span settable
OLED self-luminous display
Display reversing 180°
Switching can be set normally open / normally closed
Housing with electrical connection against process connection rotatable 330°
Displaying temperature peak value and environment temperature
Parameters setting for Password protection
MODBUS protocol optional

Technical Data:

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Ordering sheet:

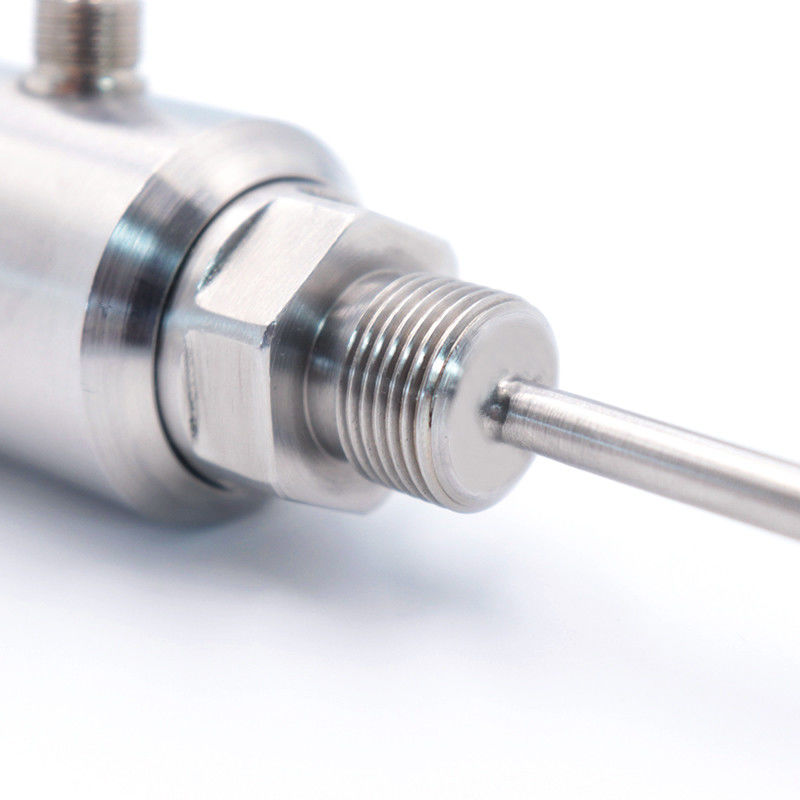

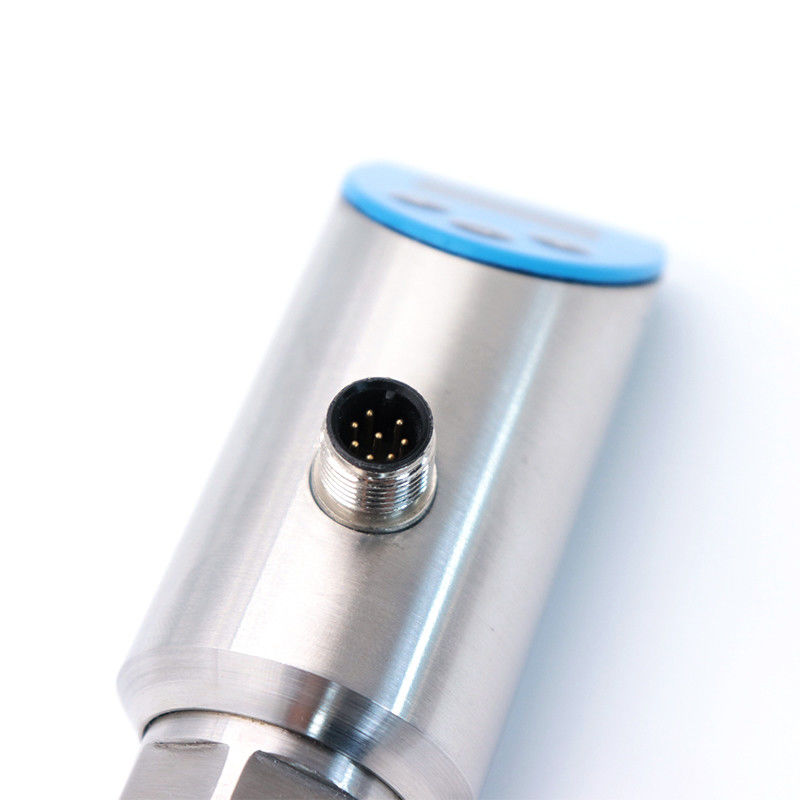

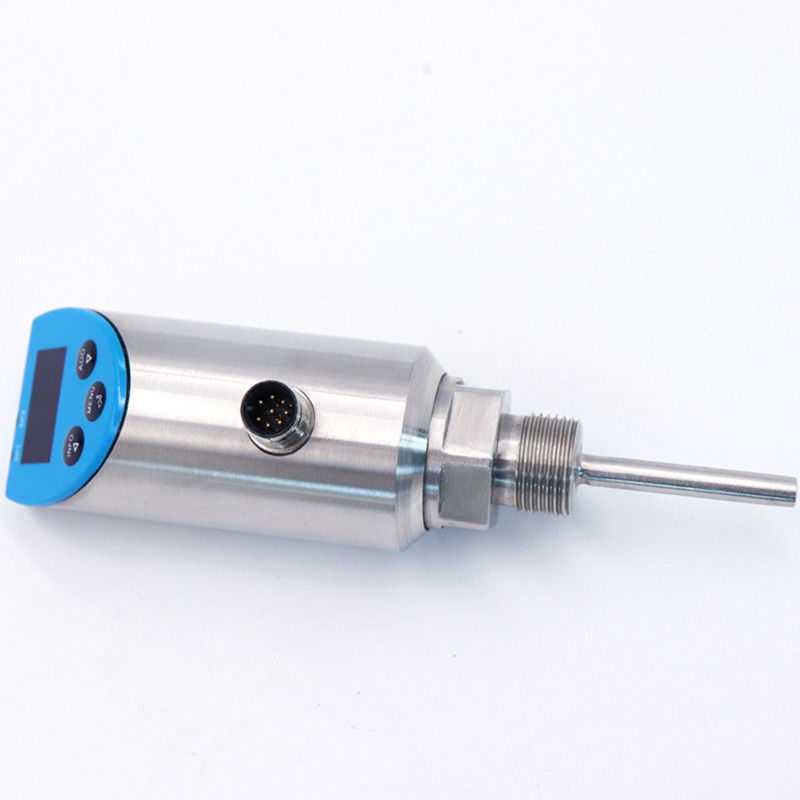

Product Show

Nbr Sealing M12 Pt100 Water Pump Temperature Switch 1

Company Information

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
