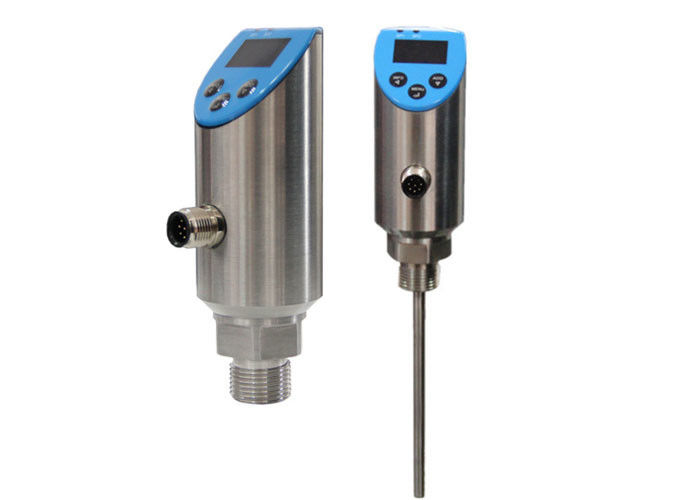

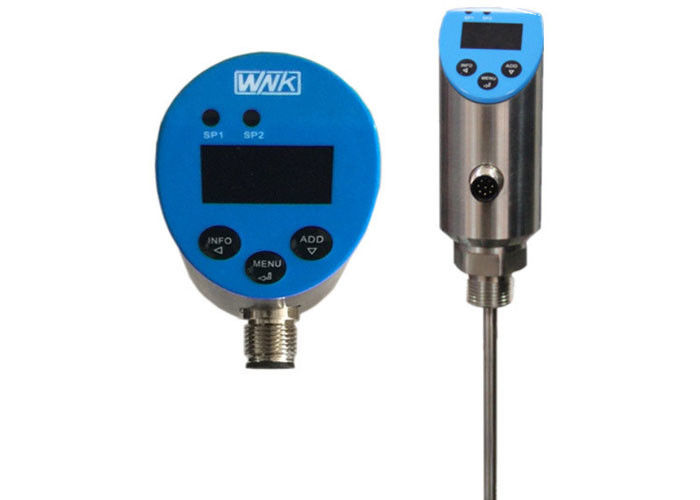

OLED Display Type Electronic Digital Temperature Switch And Transmitter

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Feature:

• Support PT100 or PT1000 input
• Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
• Switching points settable
• Analog output span settable
• OLED self-luminous display
• Display reversing 180°
• Switching can be set normally open / normally closed
• Housing with electrical connection against process connection rotatable 330°
• Displaying temperature peak value and environment temperature
• Parameters setting for Password protection
• MODBUS protocol optional

Technical Data:

Ordering sheet:
