Name: 4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

صفحه اصلی > محصولات > Compact Pressure Sensor >

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

Ceramic Capacitance Compact Pressure Sensor

I2C variable capacitance sensor

I2C capacitance based gas sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK80MA

تماس با ما

درخواست نقل قول

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

Product Details

خروجی:

24VDC/12VDC/5VDC/3.3V

محدوده فشار:

0 تا 6 مگا پاسکال

رسانه های اندازه گیری شده:

مایع ، گاز و بخار

اتصال الکتریکی:

Packard، M12، DIN43650، کابل

مصالح مسکن:

Alunimum/Brass/SST 304

کلمات کلیدی:

سنسور فشار

نرخ IP:

IP65

اتصال فرآیند:

G1/2، G1/4، M2x1.5NPT1/4، سفارشی سازی

برجسته کردن:

Ceramic Capacitance Compact Pressure Sensor

I2C variable capacitance sensor

I2C capacitance based gas sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 عدد

قیمت

negotiable

جزئیات بسته بندی

بسته بندی استاندارد یا طبق نیاز شما

زمان تحویل

3-5 روز

شرایط پرداخت

T/T ، PayPal ، West Union

قابلیت ارائه

1000

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

بهترین قیمت رو بدست بیار

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

4-20ma 0.5-4.5v I2C Output Ceramic Capacitance Pressure Sensor For Liquid Gas Steam

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Specification

Applicable media	Liquid, gas and steam
Pressure range00	0-6Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

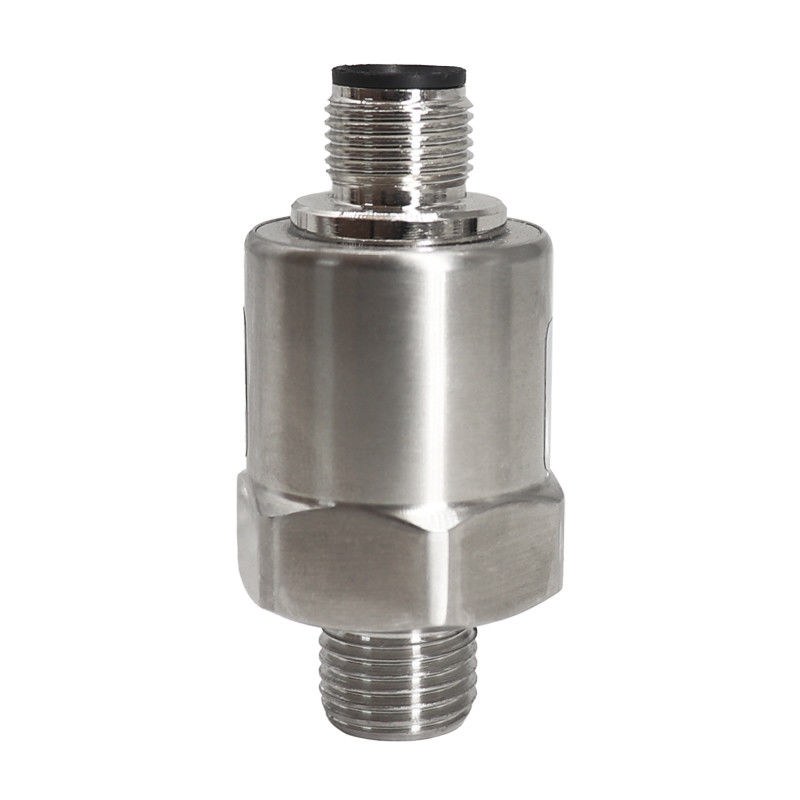

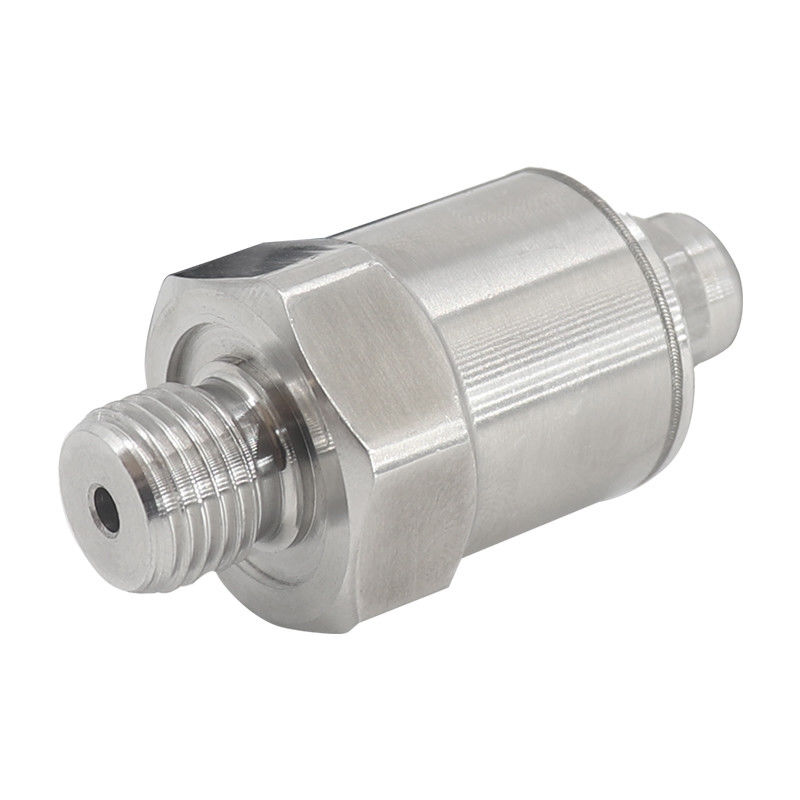

Product display:

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam 0

Company introduction:

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
