صفحه اصلی > محصولات > Compact Pressure Sensor >

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

I2C Water Pressure Sensor

15MPa Water Pressure Sensor

Ceramic Capacitive Pressure Sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

CE&UL

شماره مدل:

WNK80MA

تماس با ما

درخواست نقل قول

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Product Details

منبع تغذیه:

24VDC/12VDC/5VDC/3.3V

محدوده فشار:

0 تا 15 مگا پاسکال

رسانه های اندازه گیری شده:

مایع ، گاز و بخار

اتصال الکتریکی:

Packard، M12، DIN43650، کابل

مصالح مسکن:

Alunimum/Brass/SST 304

کلمات کلیدی:

سنسور فشار

نرخ IP:

IP65

اتصال فرآیند:

G1/2، G1/4، M2x1.5NPT1/4، سفارشی سازی

خروجی:

4-20mA/0-5v/0.5-4.5v/I2C

برجسته کردن:

I2C Water Pressure Sensor

,

15MPa Water Pressure Sensor

,

Ceramic Capacitive Pressure Sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 عدد

قیمت

negotiable

جزئیات بسته بندی

بسته بندی استاندارد یا طبق نیاز شما

زمان تحویل

3-5 روز

شرایط پرداخت

T/T ، PayPal ، West Union

قابلیت ارائه

5000 PCS در ماه

RELATED PRODUCTS

قیمت خوب Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS آنلاین

ویدئو

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

بهترین قیمت رو بدست بیار

قیمت خوب Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor آنلاین

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

بهترین قیمت رو بدست بیار

قیمت خوب WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65 آنلاین

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

بهترین قیمت رو بدست بیار

قیمت خوب WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil آنلاین

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

IP65 4-20MA Low Cost Pressure Sensor For Water I2C Pressure Sensor

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range00	0-15Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Product Display

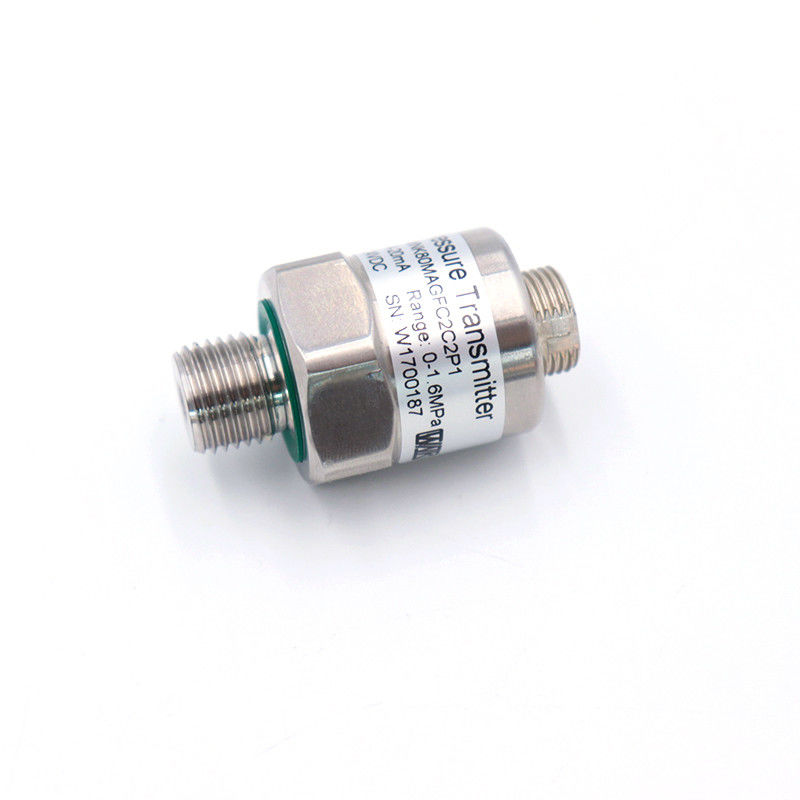

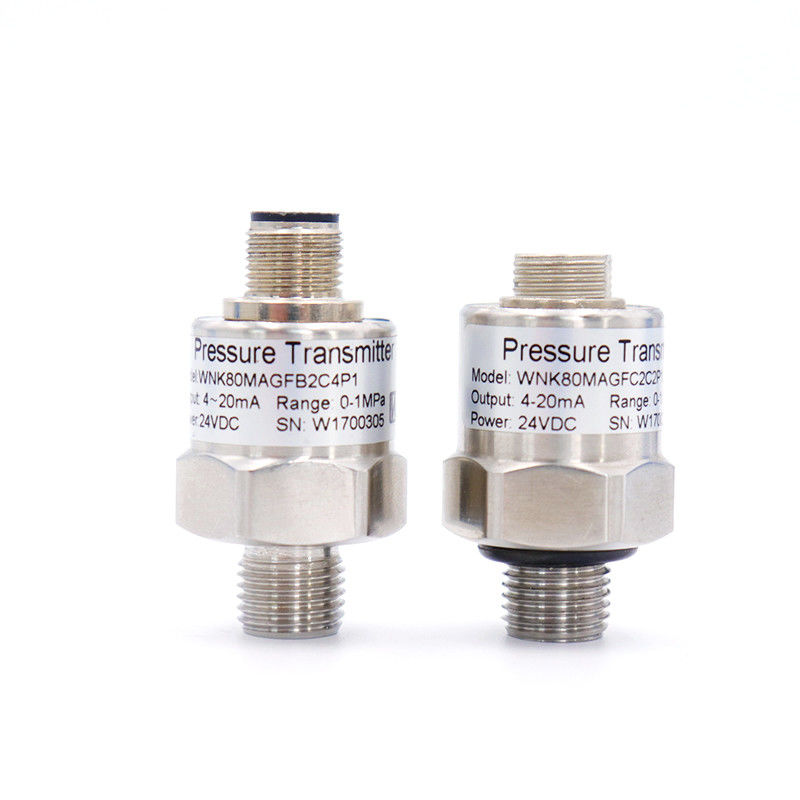

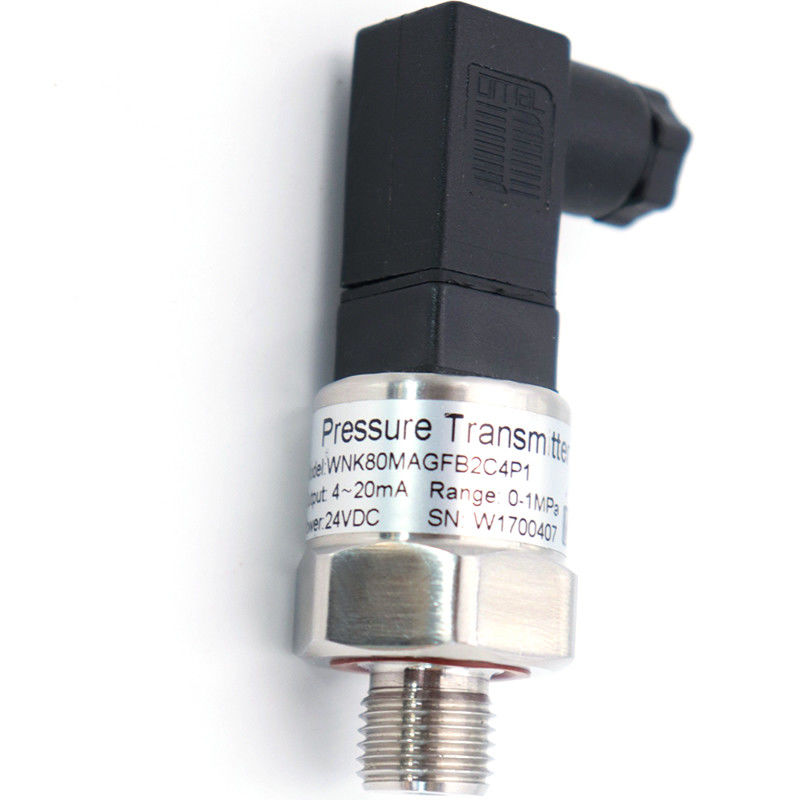

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 0

Company Information

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 1

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.

Tags：

precision pressure sensor,electronic pressure sensor,oem pressure sensor

I2C Water Pressure Sensor,15MPa Water Pressure Sensor,Ceramic Capacitive Pressure Sensor

oem pressure sensor
