Name: OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKSLS
Price: 403.00 USD
Availability: InStock

صفحه اصلی > محصولات > Electronic Digital Level Switch >

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch

RS485 water level float switch

RS485 water level sensor switch

OLED water tank level switch

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNKSLS

تماس با ما

درخواست نقل قول

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch

Product Details

محدوده فشار:

0-1 تا 100 متر H2O

آنالوگ:

0-5V،0-10V،4-20mA

دیجیتال:

RS485

نوع سوئیچینگ:

به طور معمول باز، به طور معمول بسته

جریان تغییر:

حداکثر 1.0A

زمان پاسخگویی:

<10 میلی ثانیه

مدل حرکت:

مدل تاخیری یا ویندوز

برجسته کردن:

RS485 water level float switch

RS485 water level sensor switch

OLED water tank level switch

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی استاندارد صادراتی

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T

قابلیت ارائه

2000 عدد در هفته

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

بهترین قیمت رو بدست بیار

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

بهترین قیمت رو بدست بیار

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

بهترین قیمت رو بدست بیار

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

4-20MA 0-5v 0-10v Output Water Level Switch For Water Pump And Deep Well

Product Description

1. Liquid and oil media level measurement
2. Switching points settable
3. Switching can be set normally open / normally closed
4. Analog output span settable
5. High light switch indicating
6. OLED self-luminous display
7. Display turnable 180°
8. Housing with electrical connection against process connection rotatable 330°
9. Media density settable

Product Spec

Measuring range	0…1mH2O to 100mH2O
Accuracy	≤0.5%FS
Supply power	12-30v DC
Switching type	Normally closed, Normally Open
Analog output accuracy	±0.2%FS
Switching respond time	<10ms
Screen display	OLED
Working temperature	-30-80C
Media temperature	-30-80C
Storage temperature	-40-80C
Protection calss	IP65
Switching indicator	2x red led
Switching motion mode	delay or window mode
Displaying pressure units	psi, bar, mbar, pa, Kpa, Mpa

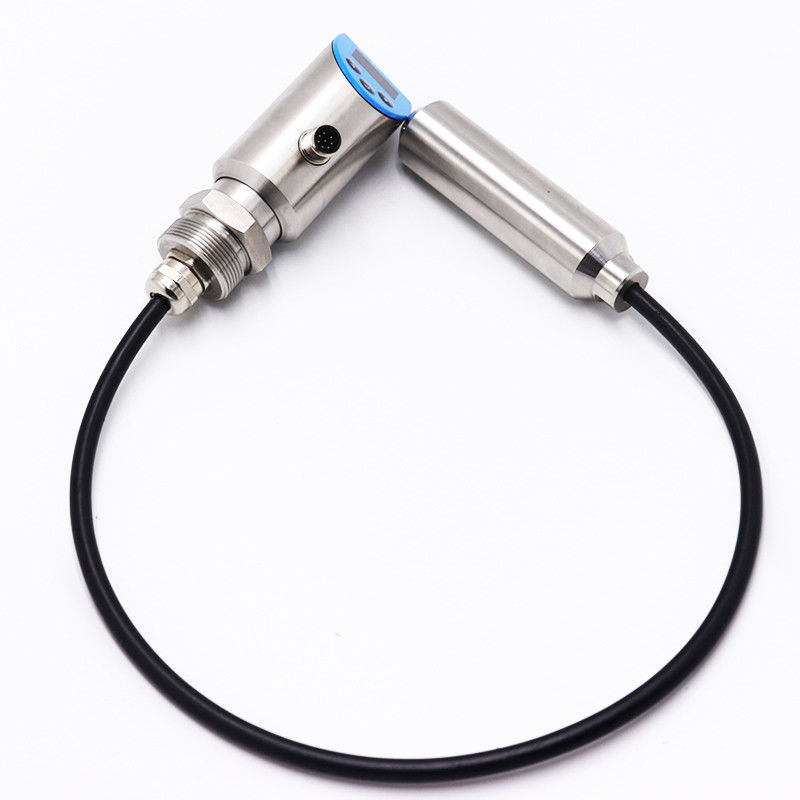

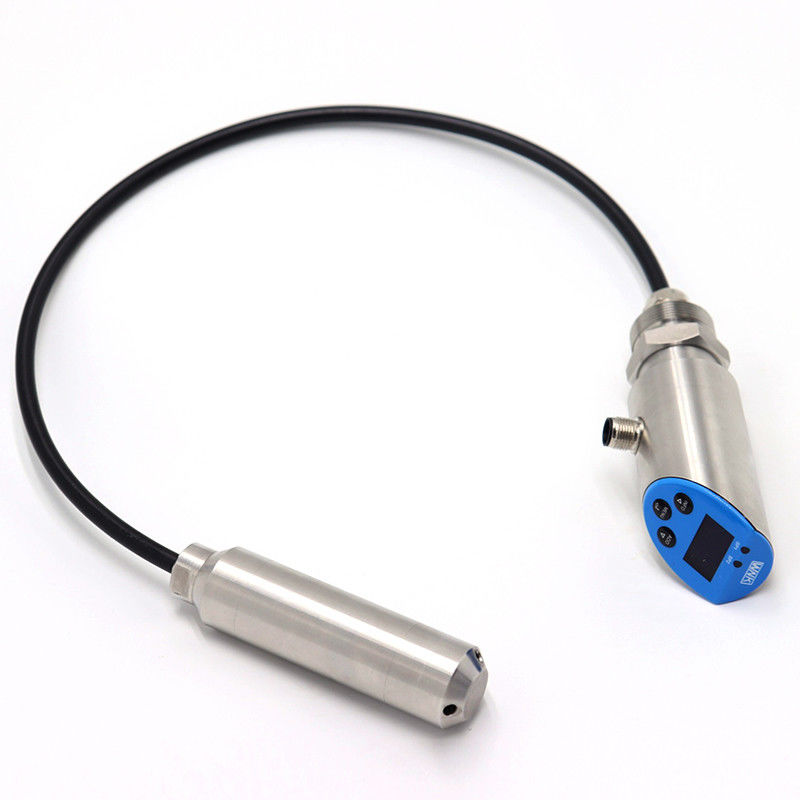

Product Show

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 0

Company Information

Certifications

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 6
Package

OLED Display Self Luminous RS485 Water Tank Switch Level Float Switch 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
