Name: 0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKSLS
Price: 403.00 USD
Availability: InStock

صفحه اصلی > محصولات > Electronic Digital Level Switch >

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

liquid level switch

industrial level switch

OLED Indicator Electronic Digital Level Switch

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNKSLS

تماس با ما

درخواست نقل قول

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

Product Details

محدوده فشار:

0-1 تا 100 متر H2O

آنالوگ:

0-5V،0-10V،4-20mA

دیجیتال:

RS485

نوع سوئیچینگ:

به طور معمول باز، به طور معمول بسته

جریان تغییر:

حداکثر 1.0A

زمان پاسخگویی:

<10 میلی ثانیه

مدل حرکت:

مدل تاخیری یا ویندوز

برجسته کردن:

liquid level switch

industrial level switch

OLED Indicator Electronic Digital Level Switch

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی استاندارد صادراتی

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T

قابلیت ارائه

2000 عدد در هفته

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

بهترین قیمت رو بدست بیار

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

بهترین قیمت رو بدست بیار

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

بهترین قیمت رو بدست بیار

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

WNK SLS 0-10V Digital Water Fuel Level Switch With OLED Indicator

1. Liquid and oil media level measurement
2. Switching points settable
3. Switching can be set normally open / normally closed
4. Analog output span settable
5. High light switch indicating
6. OLED self-luminous display
7. Display turnable 180°
8. Housing with electrical connection against process connection rotatable 330°
9. Media density settable

Smart Electronic Level Switch with OLED Display
Model No.	SLS
Measuring range	0…1mH2O to 100mH2O
Accuracy	≤0.5%FS
Supply power	12...30VDC
Temperature error within rated temp range	±0.02%FS/℃ (Zero/full span)
Long-term stability	±0.3%FS/year
Analog output accuracy	±0.2%FS
Output configurations	switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
Switching current	1.0A(Max.)
Switching type	normally open , normally closed
Switching respond time	<10ms
Switching delay	0.00s~1000.0s
Switching motion mode	delay or windows mode
Analog signal output and maximum ohmic load RL	Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
Analog signal output and maximum ohmic load RL	Voltage output: 0…5/10V,5/10…0V RL>10kΩ
Screen display	OLED
Switching indicator	2X red LED
Displaying pressure units	psi,bar,mbar,Pa,kPa,MPa
Working temperature	-30℃~80℃
Media temperature	-30℃~80℃
Storage temperature	-40℃~80℃
Electromagnetism compatible	GB/T 17626.2/3/4-2006
Shock resistance	≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance	≤50g/11ms(IEC 60068-2-27-2008)
IP rating	IP65

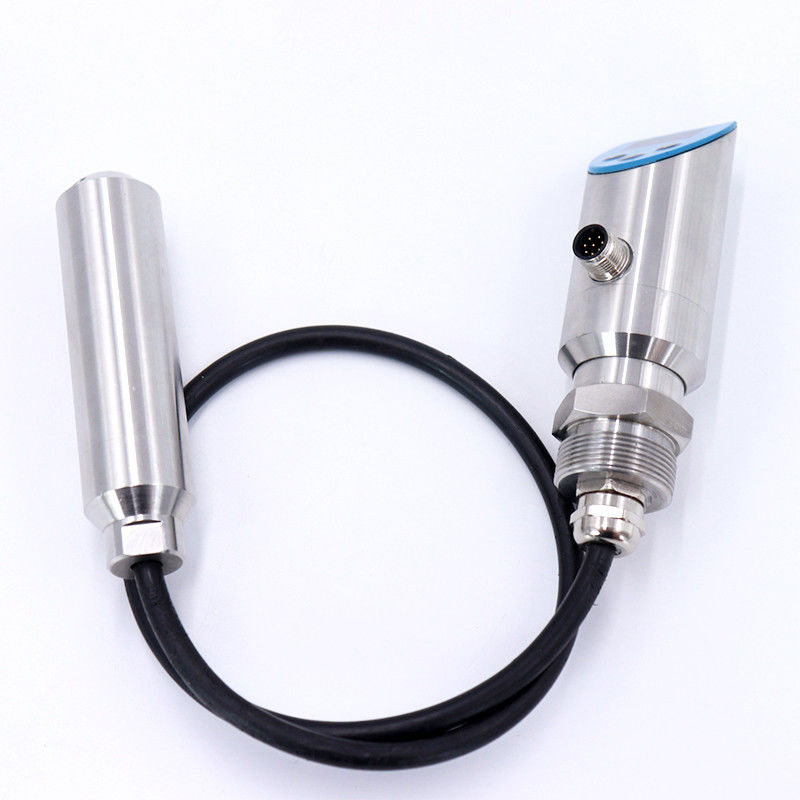

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision 0

Hot Product

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
