Name: Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

صفحه اصلی > محصولات > Compact Pressure Sensor >

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK80MA

تماس با ما

درخواست نقل قول

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

Product Details

مواد:

SS304

خروجی:

4-20mA/0-5V/0-10V/0.5-4.5vdc

کلاس تولید:

IP67

اتصال فرآیند:

G1/4 (M) ، NPT1/4 ، 1/8

سفارشی:

بله

رسانه های اندازه گیری شده:

مایع، گاز، بخار، روغن، هوا

دمای کاری:

-40-125 درجه سانتیگراد

اندازه گیری فشار:

فشار گیج، فشار آب بندی

برجسته کردن:

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن خنثی یا طبق نیاز شما.

زمان تحویل

5-8 روز کاری

شرایط پرداخت

D/P، T/T، Western Union، Paypal

قابلیت ارائه

5000/ قطعه/ ماه

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

بهترین قیمت رو بدست بیار

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor

Product Description

Applicable media	Liquid, Gas
Pressure range	0-100kPa~150bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel
Protection	IP65

Features:

•Specific high performance ASIC conditioning circuit;
•Dry ceramic capacitive pressure sensor;

•Robust ceramic capacitive sensitive membrane;

•Excellent anti-corrosive and anti-wear performance;

•Suitable for pollution and corrosive environment;

•Various electrical connectors optional;

•Rapid response, no hysteresis;

•Wide operating temperature range -40~135℃;

•Anti-icing;

•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;

•Accurate, stable and reliable;

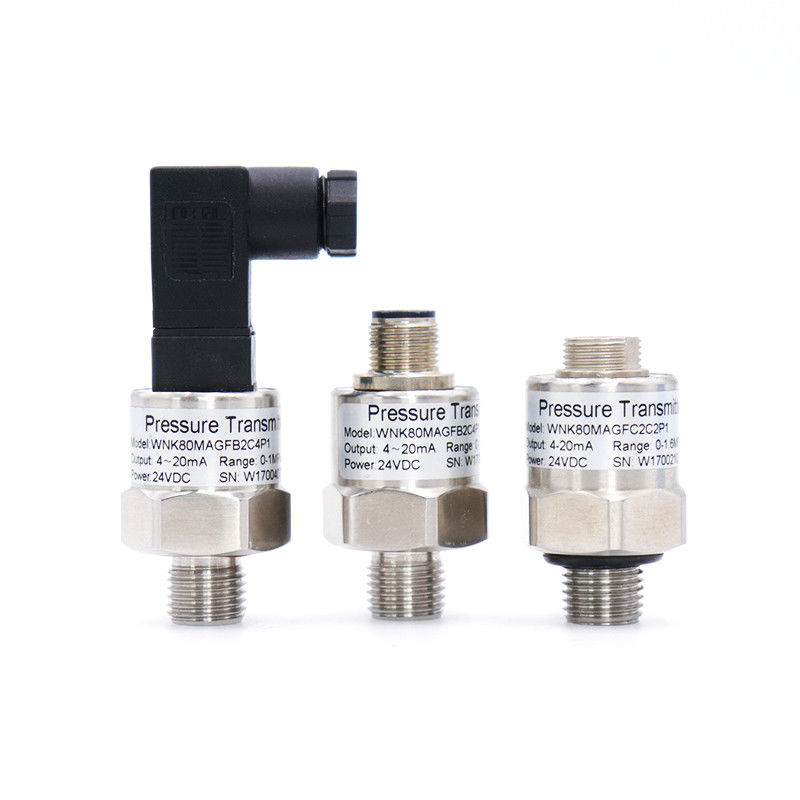

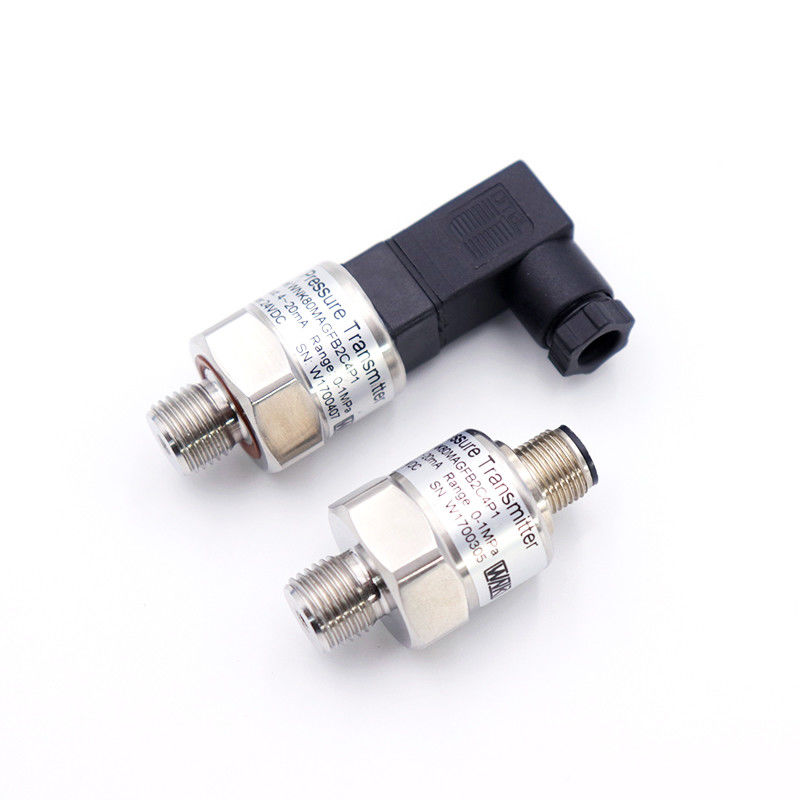

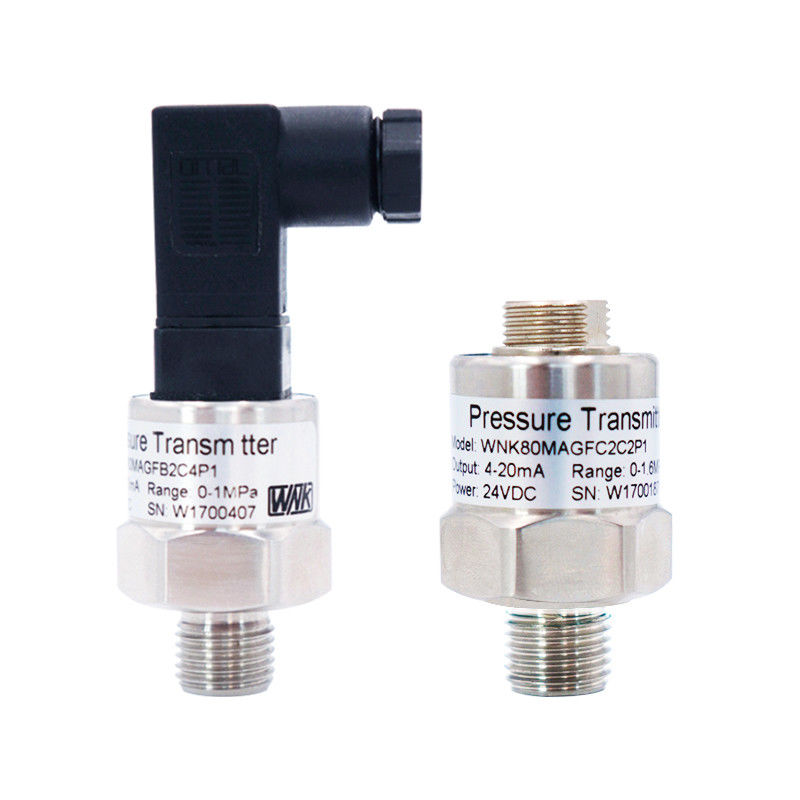

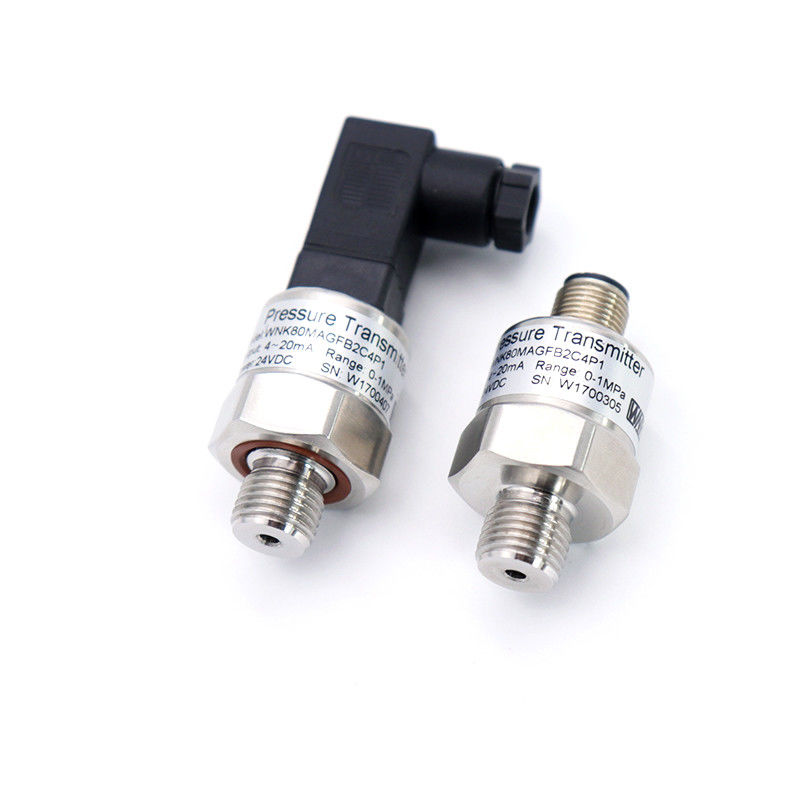

Product Show

Company Information

Factory

Exhibition

Our Certificate

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
