Name: IP65 / 67 Precision Pressure Sensor , Electronic Pressure Sensor 5V / 24V DC
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

صفحه اصلی > محصولات > Compact Pressure Sensor >

IP65 / 67 Precision Pressure Sensor , Electronic Pressure Sensor 5V / 24V DC

oem pressure sensor

precision pressure sensor

IP65 Precision Pressure Sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK80MA

تماس با ما

درخواست نقل قول

IP65 / 67 Precision Pressure Sensor , Electronic Pressure Sensor 5V / 24V DC

Product Details

محدوده فشار:

0-15 مگا پاسکال

آنالوگ:

4-20 میلی آمپر، 0.5-4.5 ولت، 0-10 ولت

دیجیتال:

IIC، SPI

دقت:

0.5٪، 1٪

حفاظت:

IP65/IP67

منبع تغذیه:

5V/24V DC

برجسته کردن:

oem pressure sensor

precision pressure sensor

IP65 Precision Pressure Sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

USD $12.00-30.00

جزئیات بسته بندی

بسته بندی استاندارد صادراتی

زمان تحویل

5-8 روز کاری

شرایط پرداخت

L/C، D/A، D/P، T/T

قابلیت ارائه

2000 عدد در هفته

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

بهترین قیمت رو بدست بیار

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

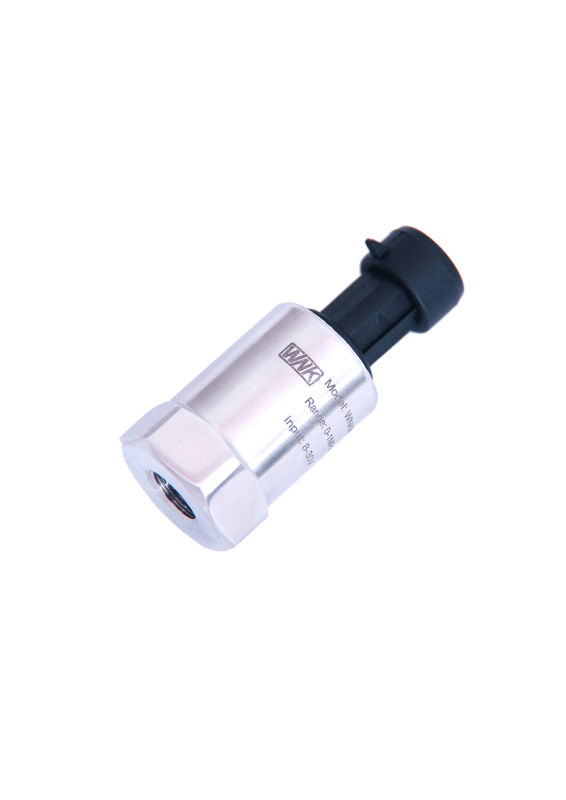

0-10V 4-20mA IIC output 0-15MPa IP65/67 compact pressure sensor

WNK80mA has features of anti-corrosion,anti-wear,shock resistance and vibration resistance.

It is a series of high performance compact pressure sensor by using AIC signal conditioning chip and dry ceramic capacitive pressure sensor

Support analog and digital output methods,medium temp -40 to 125℃.

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HVAC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

IP65 / 67 Precision Pressure Sensor , Electronic Pressure Sensor 5V / 24V DC 0

Specifications

Certification

IP65 / 67 Precision Pressure Sensor , Electronic Pressure Sensor 5V / 24V DC 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
