Name: Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA-2
Price: 21.00 USD
Availability: InStock

صفحه اصلی > محصولات > Compact Pressure Sensor >

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor For Water Heaters

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

CE, SGS, ISO9001

شماره مدل:

WNK80MA-2

تماس با ما

درخواست نقل قول

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

Product Details

فشار:

0-5 MPa

دقت:

0.5٪

متوسط:

گاز، آب، مایع، بخار

حفاظت از IP:

IP67

نوع فشار:

گیج، مطلق، خلاء

منبع تغذیه:

5VDC 12-30V

دمای کاری:

-20C - 70C

برجسته کردن:

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor For Water Heaters

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

5 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

7-10 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

5000 عدد در ماه

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

بهترین قیمت رو بدست بیار

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

بهترین قیمت رو بدست بیار

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

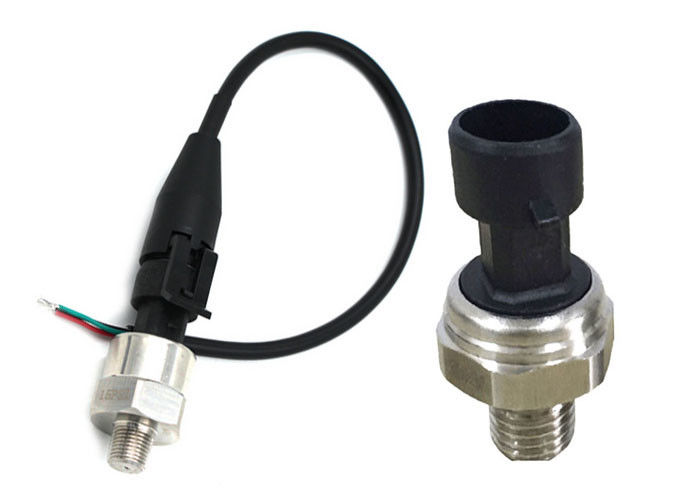

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

Specification:

Working voltage: 5V 8-32 VDC
Working temperature: -40 ~ 125 ° C
Output signal: voltage type, 0, 5,--4 5 v standard signal. Current mode, 4-20 ma standard signal output
Precision: 0 25% and 0 5%, 1% (0-80. C)
Response time: < 1 ms
Temperature drift: < + 0 01% FS /. c
Linearity, hysteresis, repeatability: < 0.1%
Stability: better than 015% FS/year
The shell material: stainless steel, aluminum, alloy, or according to customer needs.
NPT a 1/8, NPT thread interface: a quarter or the user can customize
Electrical connections: standard Packa rd Met ri - Pack connection

Features

• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;

•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.

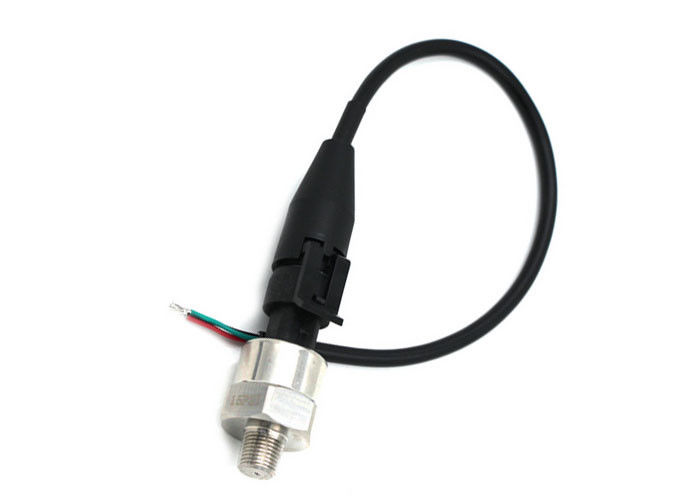

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves 0
