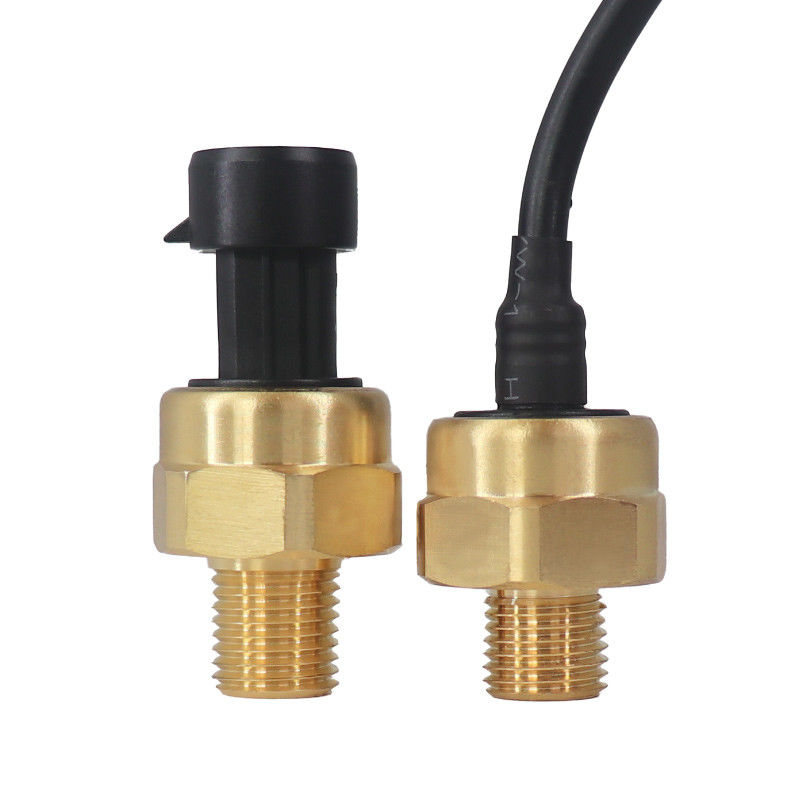

Name: 0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet

I2C water pipe sensor

2000kPa pipe pressure sensor

ASIC signal pipe pressure sensor

محل منبع:

چین

نام تجاری:

WNK

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

محدوده فشار:

0-2MPa،0-20bar،0-2000kPa

خروجی:

0.5-4.5V DC

منبع تغذیه:

4.75-5.25V DC

مواد:

برنج

اتصال دهنده فرآیند:

G1/4

اتصال برق:

خروجی کابل

دقت:

1 ٪

نام محصول:

سنسور فشار برنجی سرامیکی فشرده 0.5-4.5 ولت با عملکرد ضد خوردگی

برجسته کردن:

I2C water pipe sensor

2000kPa pipe pressure sensor

ASIC signal pipe pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

هر قطعه در کارتن جداگانه با محافظ فوم، یا بنا به درخواست مشتری

زمان تحویل

8-10 روز کاری

شرایط پرداخت

D/A، D/P، T/T، Western Union، Paypal

قابلیت ارائه

2000 قطعه در هفته

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Brass Water Pressure Sensor For Air Gas

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Mechanical Dimension:

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 0

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

PRODUCT SHOW

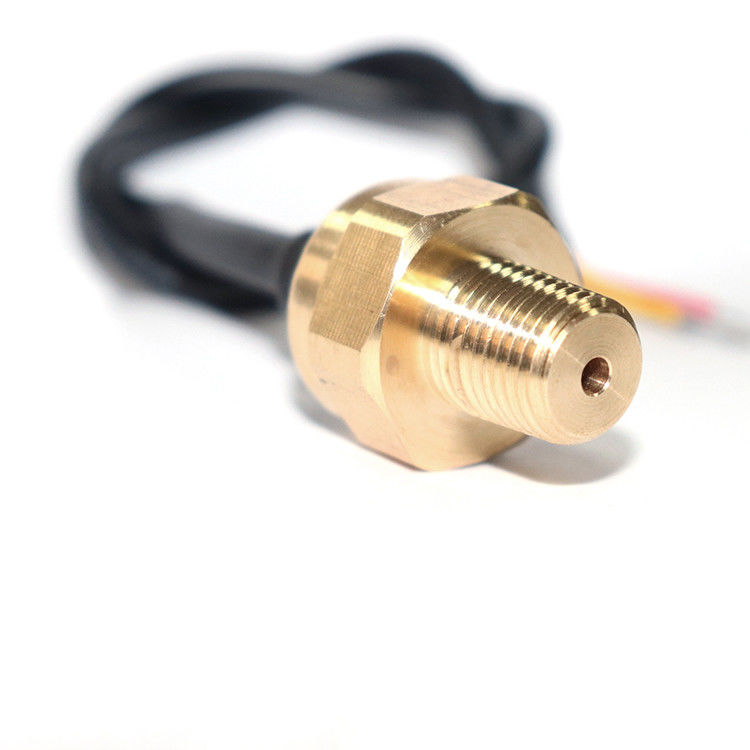

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 5

Packaging

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 6

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
