Name: 0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

محل منبع:

چین

نام تجاری:

WNK

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

محدوده فشار:

0-2MPa،0-20bar،0-2000kPa

خروجی:

0.5-4.5V DC

منبع تغذیه:

4.75-5.25V DC

مواد:

برنج

اتصال دهنده فرآیند:

G1/4

اتصال برق:

خروجی کابل

دقت:

1 ٪

نام محصول:

سنسور فشار برنجی سرامیکی فشرده 0.5-4.5 ولت با عملکرد ضد خوردگی

برجسته کردن:

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

هر قطعه در کارتن جداگانه با محافظ فوم، یا بنا به درخواست مشتری

زمان تحویل

8-10 روز کاری

شرایط پرداخت

D/A، D/P، T/T، Western Union، Paypal

قابلیت ارائه

2000 قطعه در هفته

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Brass Pressure Sensor

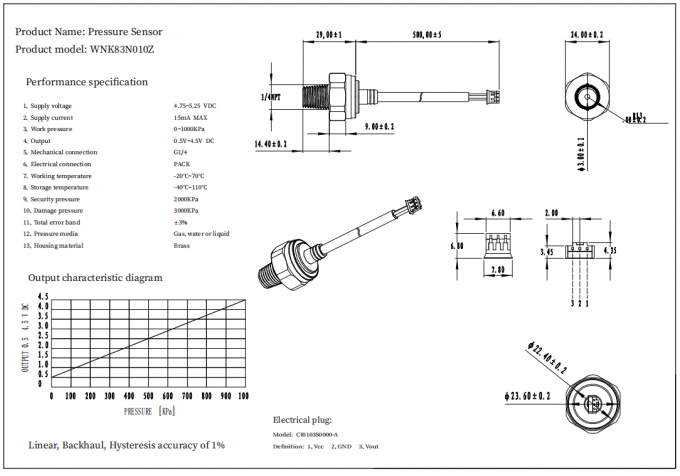

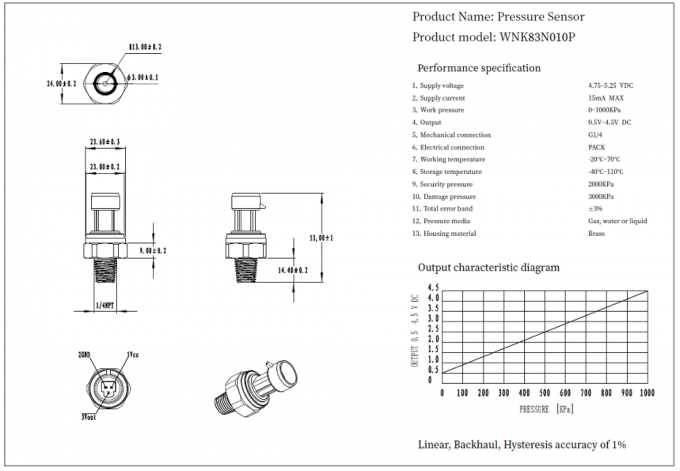

Mechanical Dimension:

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 0

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

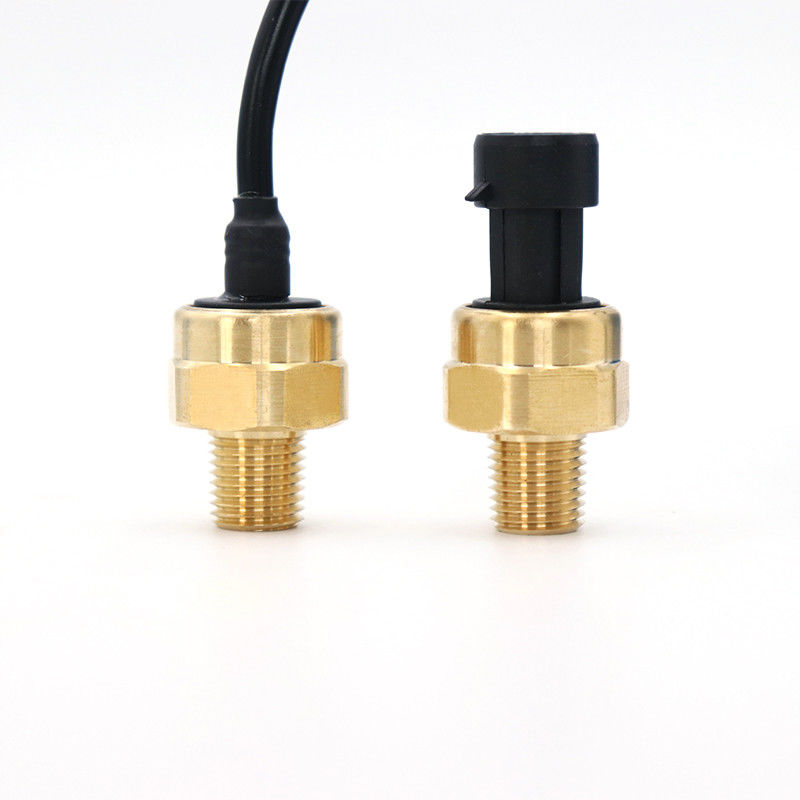

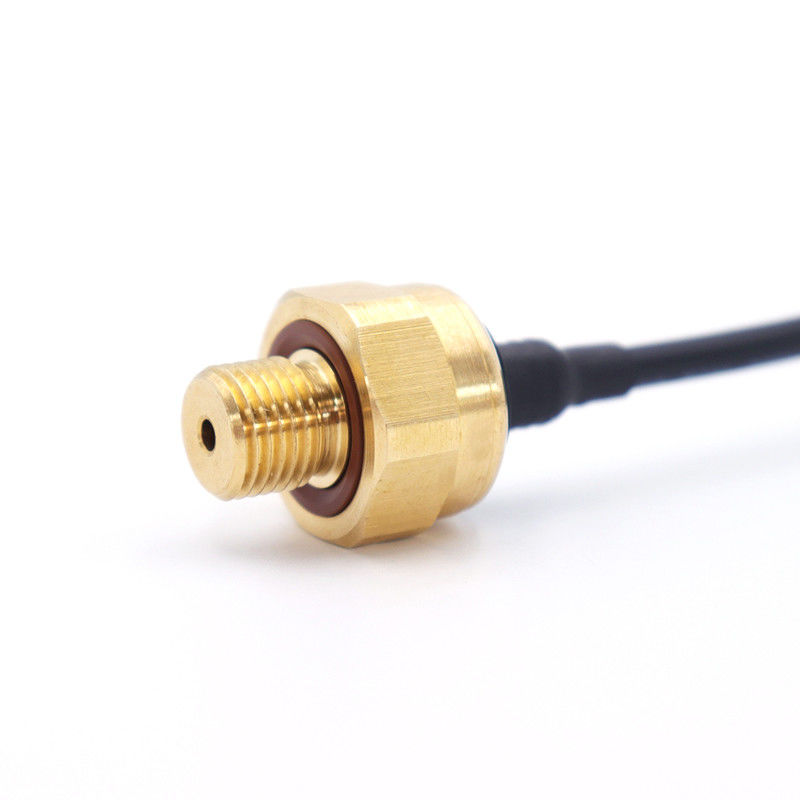

PRODUCT SHOW

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 5

Packaging

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 6

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
