Name: 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808N1
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

محل منبع:

آنهویی، چین

نام تجاری:

WNK

شماره مدل:

WNK808N1

تماس با ما

درخواست نقل قول

Product Details

رسانه های اندازه گیری شده:

هوا، گاز

محدوده فشار:

-0.25-0.25kpa/-0.5-0.5kpa/-1-1kpa/-2-2KPA/-7-7KPA/-100-100KPA

سیگنال های خروجی:

2-سیم 4-20mA/0-10V/RS485/2xPNP

دقت:

± 0.1% FS

منبع تغذیه:

12-32 ولت DC

اتصالات الکتریکی:

ترمینال یا M12

بار خارجی:

≥500Ω

نام:

فرستنده فشار میکرو دیفرانسیل 4-20 میلی آمپر هوا

برجسته کردن:

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

هر مجموعه در یک بسته بندی کارتن جداگانه با محافظ

زمان تحویل

مورد مذاکره قرار گیرد

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

-45 تا 85 درجه سانتیگراد، -40 تا 80 درجه سانتیگراد برای هدر LCD

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Micro Differential Pressure Transmitter

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 0

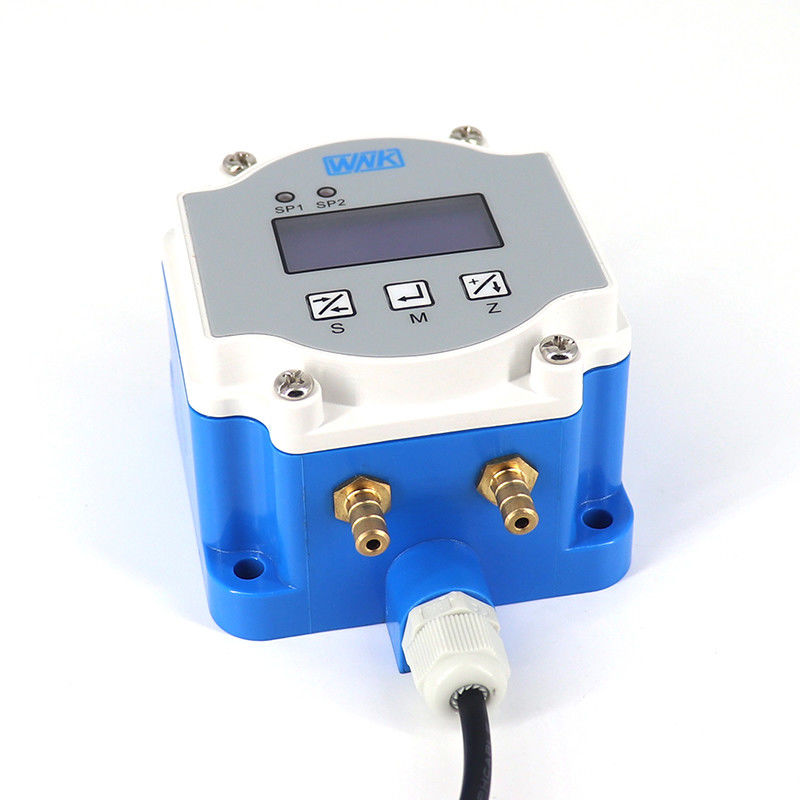

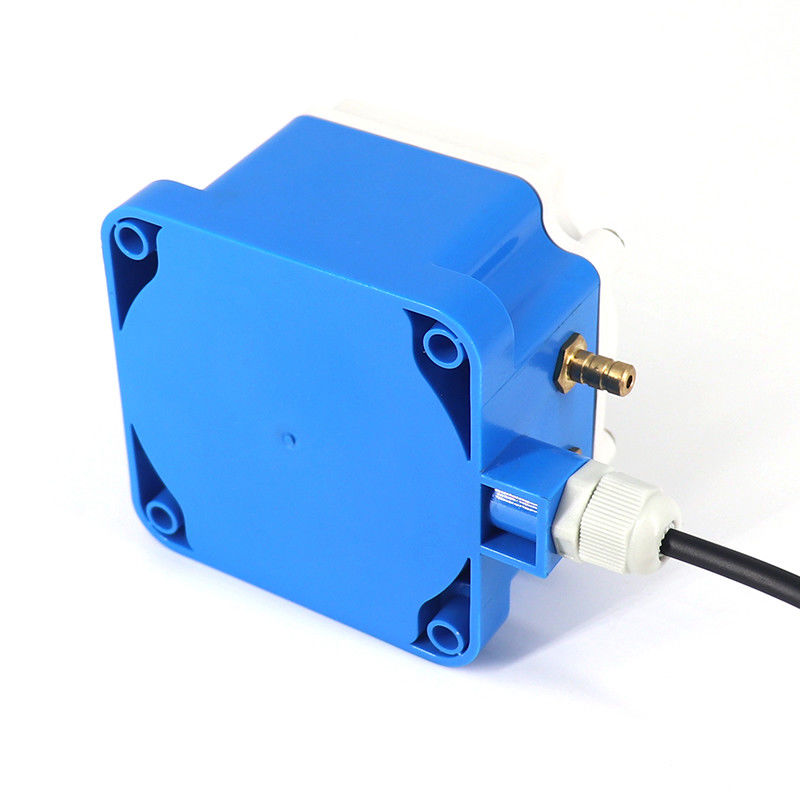

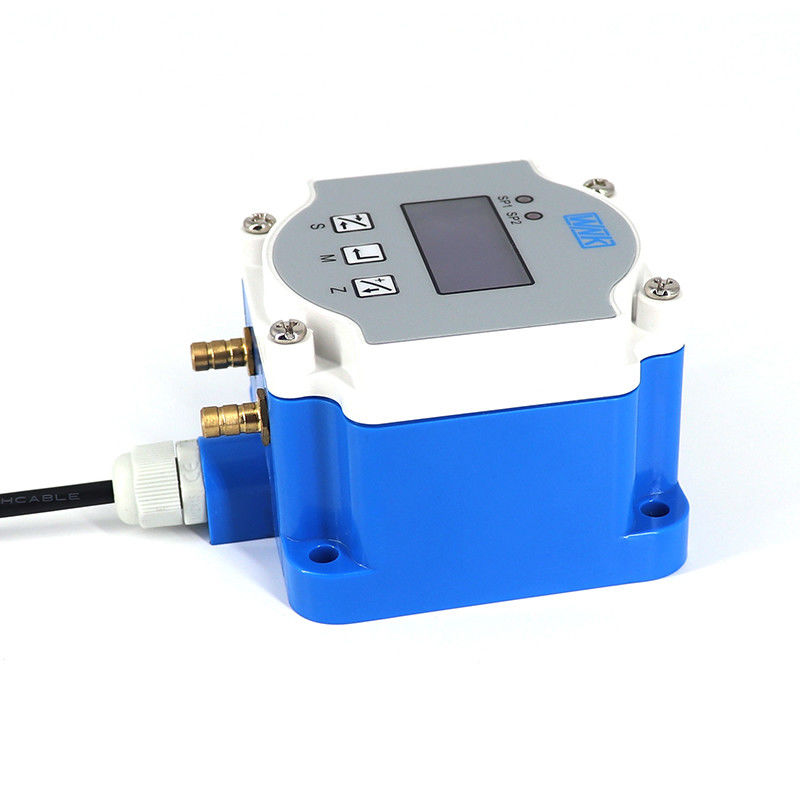

Product Show

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 1
