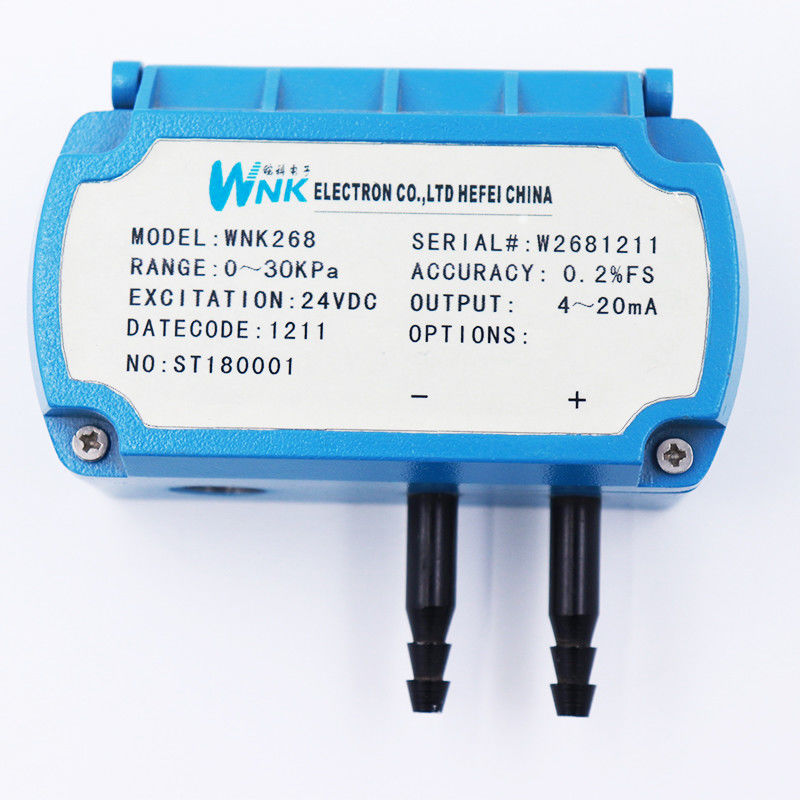

Name: macro 30KPA Electronic Differential Pressure Flow Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK268/WNK808B
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

macro 30KPA Electronic Differential Pressure Flow Transmitter

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK268/WNK808B

تماس با ما

درخواست نقل قول

macro 30KPA Electronic Differential Pressure Flow Transmitter

Product Details

شماره مدل:

WNK268/WNK808B

نوع فشار:

فشار سنج ، فشار دیفرانسیل

رسانه ها:

هوا، گاز

سیگنال خروجی:

4- 20 میلی آمپر

محدوده فشار:

-100Kpa ~ 60MPa

دقت:

0.2٪، 0.5٪ FS

دمای عملیاتی:

-40 ~ 85 ℃

دمای کاری:

-10 تا 70 درجه سانتیگراد

وزن خالص:

347.5 گرم

محل منبع:

چین

برجسته کردن:

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

جعبه ها

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T ، Western Union ، PayPal ، کارت اعتباری

قابلیت ارائه

2000 عدد در هفته

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-10Pa~100Pa, -100kPa~+100kPa
Accuracy	0.2%, 0.5%
Stability	0.8%F.S./Year
Maximum static pressure	70 KPa
Max overload	250% of sensor range
Output signals	4~20mA
Housing material	Aluminum14
Induct Pressure Connection:	M 8x1 female or Ø 8 dowel connection
Power Supply	Non-explosion: 10.5~45V DC
Power Supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Compensation temperature	-10~70℃
Working temperature	-10~70℃

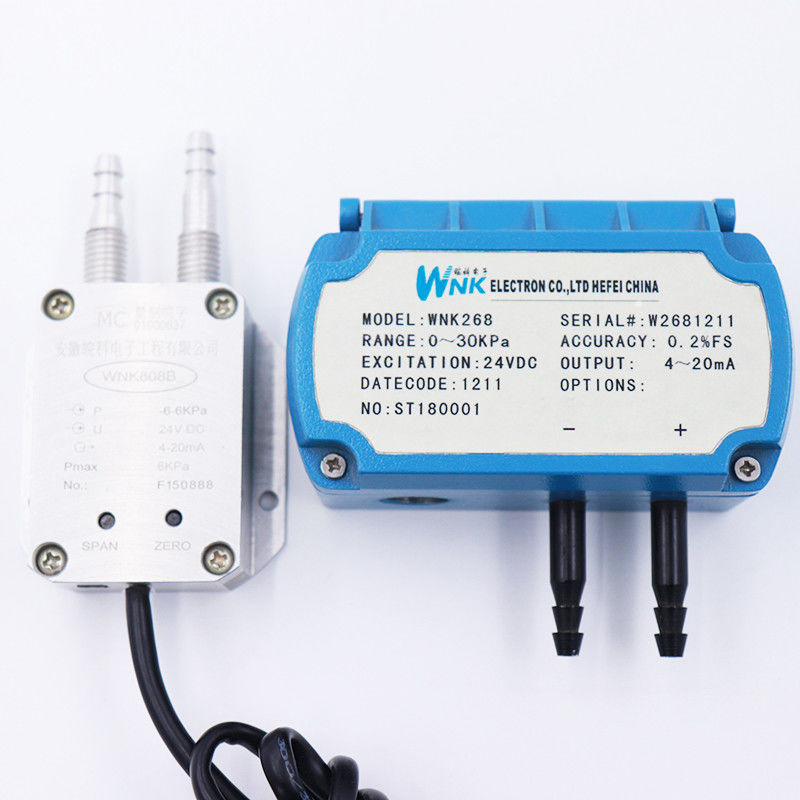

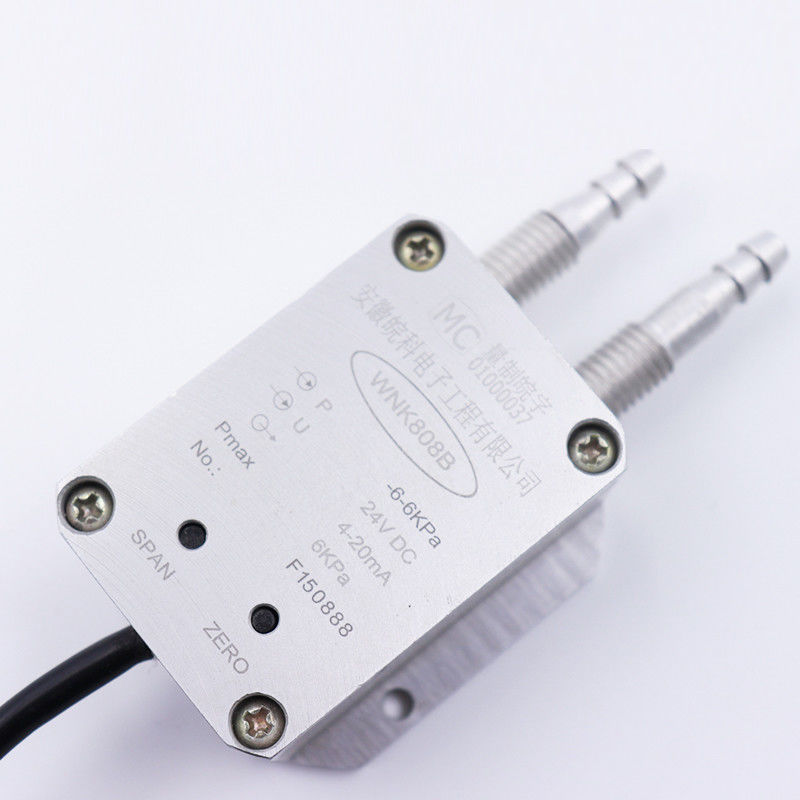

WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
