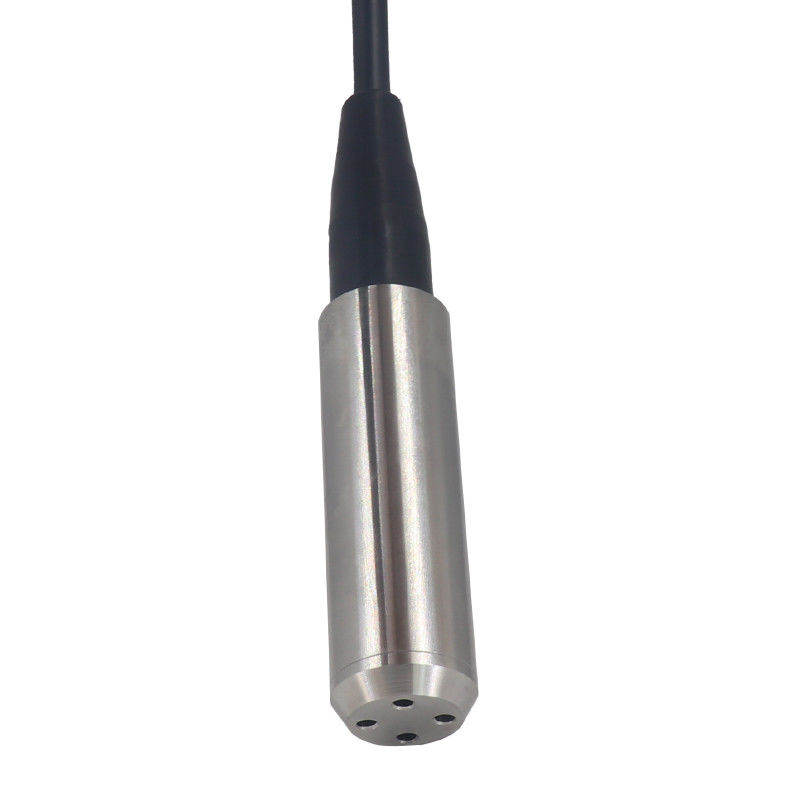

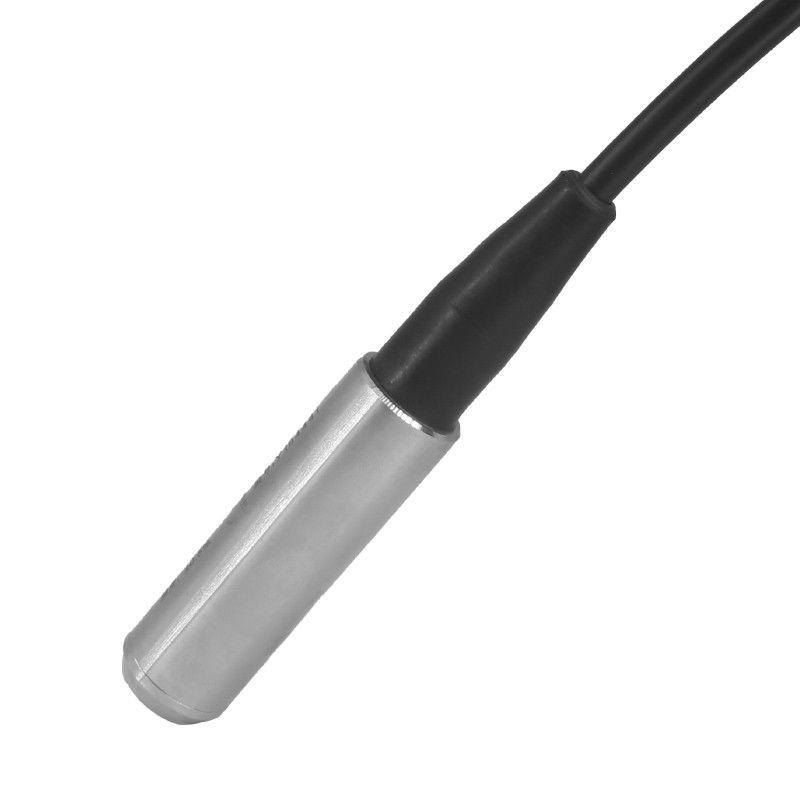

Name: 200m H2O 304SST Submersible Level Sensor Transducer For Liquid Water
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 77.00 USD
Availability: InStock

صفحه اصلی > محصولات > Submersible Level Sensor >

200m H2O 304SST Submersible Level Sensor Transducer For Liquid Water

304SST Submersible Level Sensor

200m Submersible Level Sensor

304SST submersible pressure transducer

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK8010-TT

تماس با ما

درخواست نقل قول

Product Details

آنالوگ:

4-20 میلی آمپر، 1-5 ولت، 0.5-4.5، 0-5 ولت، 0-10 ولت، I2C

دیجیتال:

هارت، RS485 و غیره

دامنه اندازه گیری:

0-1 ~ 200MH2O

رسانه ها:

مایع، آب

دقت:

± 0.25٪ FS / سال، ± 0.5٪ FS / سال

مصالح مسکن:

فولاد ضد زنگ

منبع تغذیه:

24V/12V/5V/3.3V

حفاظت:

IP68

برجسته کردن:

304SST Submersible Level Sensor

200m Submersible Level Sensor

304SST submersible pressure transducer

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

USD $35.00-120.00 pre piece

جزئیات بسته بندی

بسته صادرات استاندارد

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram، Paypal

قابلیت ارائه

1000 قطعه در هفته

IP68 Stainless steel Dirty Water Submersible Level Sensor

بهترین قیمت رو بدست بیار

ویدئو

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

بهترین قیمت رو بدست بیار

ویدئو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

بهترین قیمت رو بدست بیار

ویدئو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

200mH2O 304SST Submersible Water Oil Level Sensor Transmitter Tank

Product Description
1. Our WNK8010 with the reliable amplified circuit and precision temperature compensation,to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

Product Specification

Output signals
Output	4-20mA,,0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH2O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Ordering sheet

200m H2O 304SST Submersible Level Sensor Transducer For Liquid Water 1

Company

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
