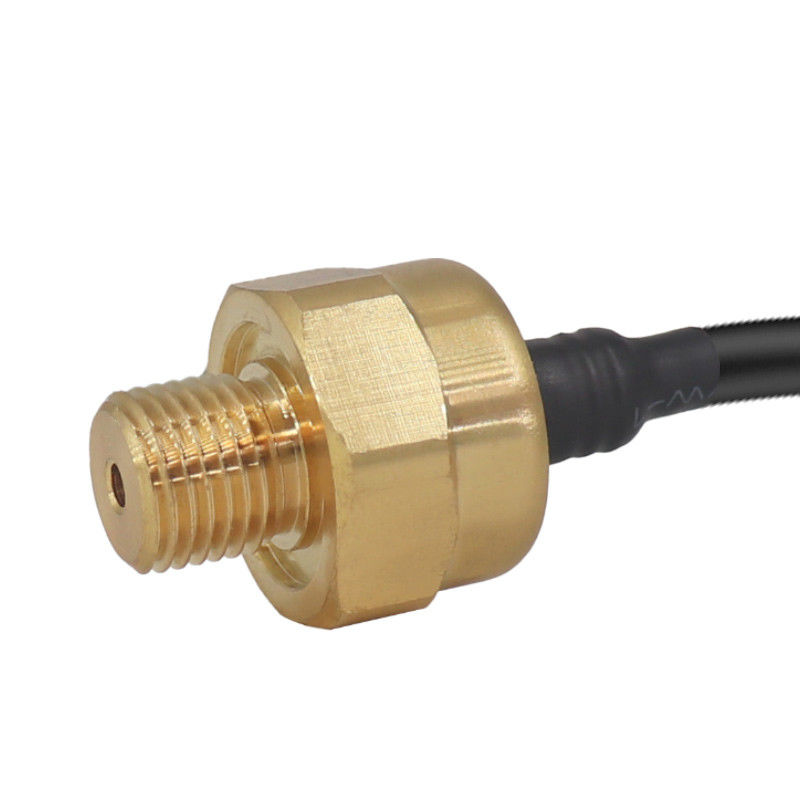

Name: 1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 25.00 USD
Availability: InStock

صفحه اصلی > محصولات > Water Pressure Sensor >

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

2MPa ceramic capacitive pressure sensor

1/4NPT ceramic capacitive pressure sensor

1/4NPT capacitive pressure transmitter

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

محدوده فشار:

0-2MPa،0-20bar،0-2000kPa

خروجی:

0.5-4.5V DC

منبع تغذیه:

4.75-5.25V DC

مواد:

برنج

اتصال دهنده فرآیند:

1/4 NPT G1/4

اتصال برق:

خروجی کابل/ بسته بندی

دقت:

1 ٪

برجسته کردن:

2MPa ceramic capacitive pressure sensor

1/4NPT ceramic capacitive pressure sensor

1/4NPT capacitive pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

هر قطعه در کارتن جداگانه با محافظ فوم، یا بنا به درخواست مشتری

زمان تحویل

8-10 روز کاری

شرایط پرداخت

D/A، D/P، T/T، Western Union، Paypal

قابلیت ارائه

2000 قطعه در هفته

انتقال دهنده فشار صنعتی با منبع برق 5VDC و مواد خانه مقاوم به خوردگی SS304

بهترین قیمت رو بدست بیار

سنسور فشار سیلیکون پخش شده 4-20ma 5V 24V فرستنده قوی طراحی شده برای عملکرد نظارت فشار طولانی مدت

بهترین قیمت رو بدست بیار

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

بهترین قیمت رو بدست بیار

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

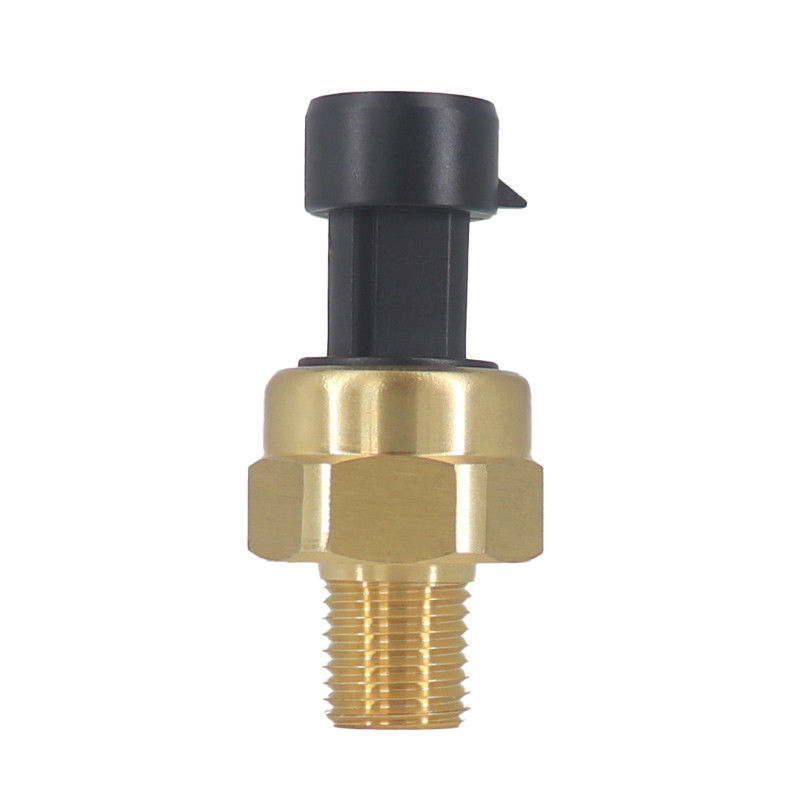

Customized Packard Cable Outlet 0.5 - 4.5V DC Output Water Pressure Sensor

Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet/ Packard
Mechanical connection	1/4 NPT G1/4
Housing material	Brass

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 0

Certification

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 2

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
