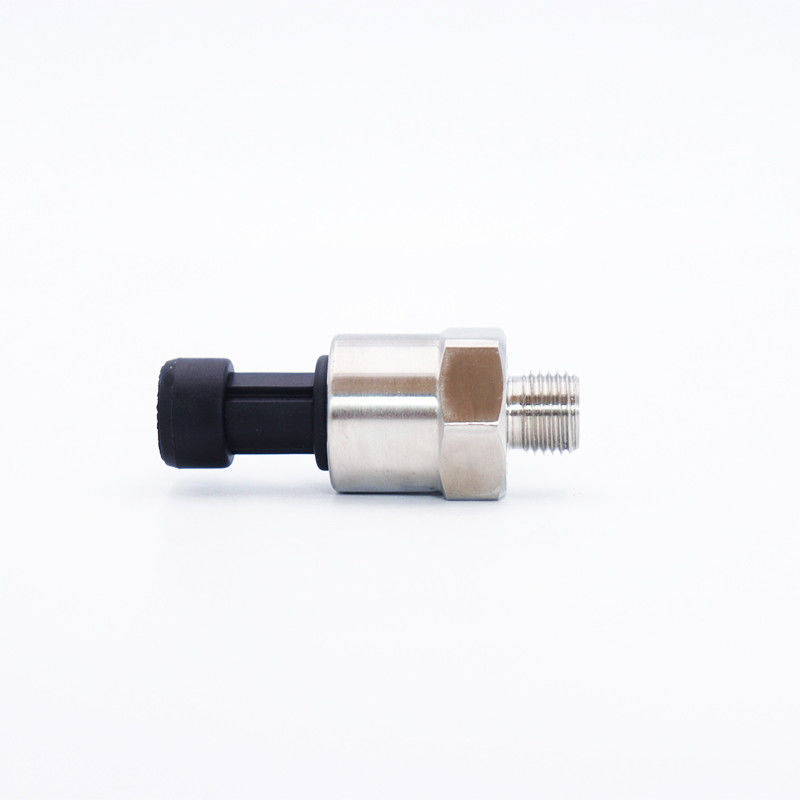

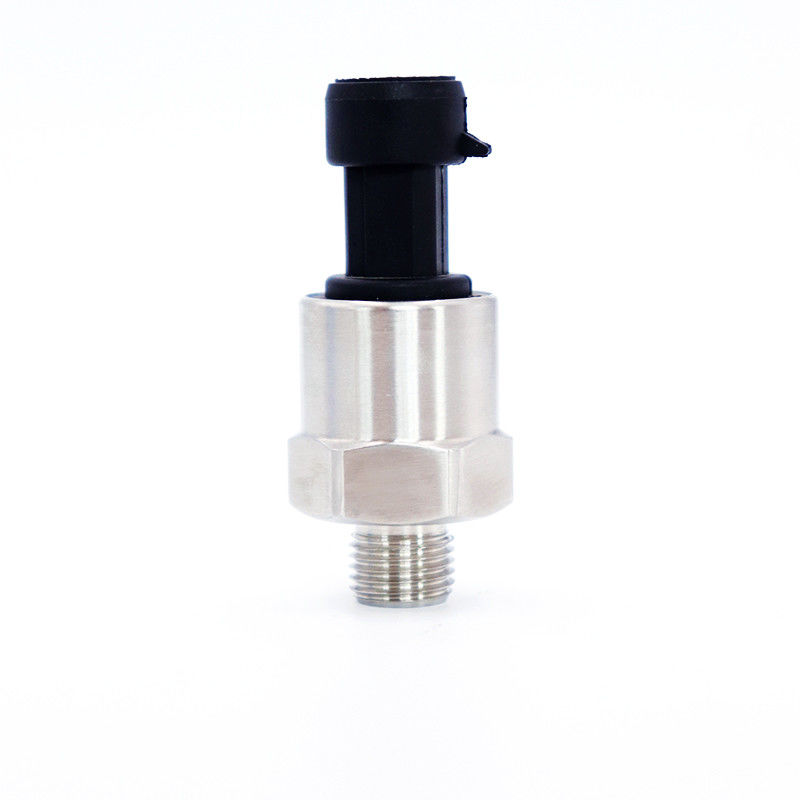

Packard 4-20ma 0.5-4.5v 0-5V Output Diffused Silicon Pressure Sensor
WNK81MA pressure transmitter is a high stable pressure transmitter by using specific ASIC signal conditioning chip and high performance SS316L diaphragm diffused silicon pressure sensor. The internal specific ASIC integrated circuit transforms milivolt signal to standard voltage, current or frequancy signal. It can easily connect with PC interface card, controlling instruments, smart gauges or PLC. It is compact designed, light and stainless steel sealing structure, which enable it capability of working in corrosive environment.
Features:
- Optional packard, M12, Small Hirschman connectors;
- Small dimensions, housing is customizable;
- High Accuracy 0.5%FS, 1%FS and 2%FS
- Pressure range 0~60MPa (ceramic capacitive sensor range 0~15MPa, diffused silicon sensor 0~60MPa);
- Digital outputs of SPI and I2C; analog outputs 4~20mA/0.5~4.5V/1~5V/ 0~5V, pls contact us for other outputs;
- Wide operation temperature range -40~125ºC;
- High performance ceramic capacitive or diffused silicon pressure sensor;
- OEM, ODM, customization;
Applications:
• Pressure measurement of gas, vapor or liquid in various areas;
• Liquid level, volume or mass measurement;
• Integrated in a variety of user-defined solutions;
• Smart water and gas management system, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Performances:
| Input |
| Pressure type |
Gauge pressure, sealing pressure, absolute pressure |
| Measuring range |
-0.1~60MPa |
| Output |
| Analog |
0.5…4.5V, 4…20mA, 1...5V, 0...10V |
| Analog |
I2C, SPI |
| Accuracy |
| 0.2% |
Linearity, hysteresis, repetitiveness:＜0.2% sensor full range |
| 0.5% |
Linearity, hysteresis, repetitiveness:＜0.5% sensor full range |
| Overload |
| 2.5X pressure sensor full scale |
| Housing Info. |
| Housing Material |
SS 304, Cu, Al |
| Wetting Material |
SS316L |
| Ingress Protection |
IP67 |
Power Supply
| Supply voltage |
5V 24VDCregulated power supply, |
| Supply voltage effect |
5V supply voltage effect: min.3V/max.5.5V
●For 0.5…4.5V output sensor, voltage has no effect for linearity and temperature compensation, voltage is proportional to LRV and FRV.
●For I2C and SPI digital output sensor, voltage has no effect for linearity, LRV, URV and compensation temperature.
24V supply power effect: min.9V/max30V
●For 4…20mA current output sensor, voltage has no effect for linearity, LRV, URV and compensation temperature.
|
Ordering info:
| Model |
Product description |
| WNK81MA |
Pressure Transmitter |
| CODE |
Pressure Type |
| A |
Absolute Pressure |
| G |
Gauge pressure |
| S |
Sealing pressure |
| CODE |
Accuracy |
| 2 |
0.2%FS |
| 5 |
0.5%FS |
| CODE |
Sensor range |
| A |
0.1bar |
E |
10 bar |
| B |
0.5 bar |
F |
50 bar |
| C |
1 bar |
G |
100 bar |
| D |
5bar |
H |
600 bar |
| Other ranges are in developing |
| CODE |
Output |
| 1 |
0.5…4.5V DC |
| 2 |
4…20mA |
| 3 |
I2C |
| 4 |
SPI |
| 5 |
0...10V DC |
| 6 |
1...5V DC |
| X |
Customization |
| CODE |
Electrical connector |
| C1 |
Packard |
| C2 |
M12 |
| C3 |
Cable outlet(pls put down cable length, such as 01 for 1 meters) |
| C4 |
Mini DIN43650 |
| C5 |
GX12-3 |
| CX |
Customization |
| CODE |
Process connector |
| P1 |
G1/4 |
P5 |
M12×1.5 |
| P2 |
1/4-18NPT |
P6 |
1/4-19PT |
| P3 |
1/8-27NPT |
P7 |
7/16-20UF(female) |
| P4 |
M14×1.5 |
PX |
Customization |
| Pls contact WNK for other process connectors |
|
Typical ordering code:WNK81MA GC2 C1 P1
WNK81MA GC2 C310 P1________C3 direct cable outlet length is 1 meter.
|
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Product Show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery?
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
