Name: 1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 20.00 USD
Availability: InStock

صفحه اصلی > محصولات > Air Pressure Sensor >

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection

4.5VDC ceramic capacitive pressure sensor

1000kPa ceramic capacitive pressure sensor

1000kPa capacitive pressure transmitter

محل منبع:

چین (سرزمین اصلی)

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

دقت:

1 ٪

رسانه های اندازه گیری شده:

مایع ، گاز و بخار

محدوده فشار:

0-1000 کیلو پاسکال

سیگنال خروجی:

0.5-4.5 VDC

منبع تغذیه:

4.75-5.25 VDC

مواد:

برنج

اتصال فرآیند:

1/4NPT

اتصال الکتریکی:

پاکارد

برجسته کردن:

4.5VDC ceramic capacitive pressure sensor

1000kPa ceramic capacitive pressure sensor

1000kPa capacitive pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 عدد

قیمت

negotiable

جزئیات بسته بندی

جعبه کارتن صادراتی استاندارد

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

5000+ قطعه + در ماه

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

بهترین قیمت رو بدست بیار

ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار

ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار

ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Product Description

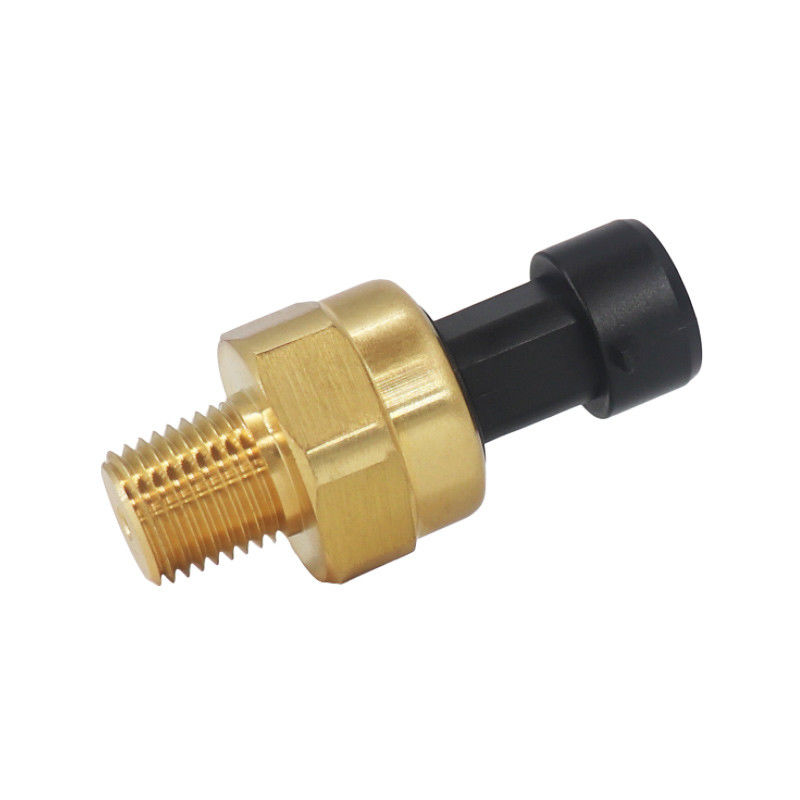

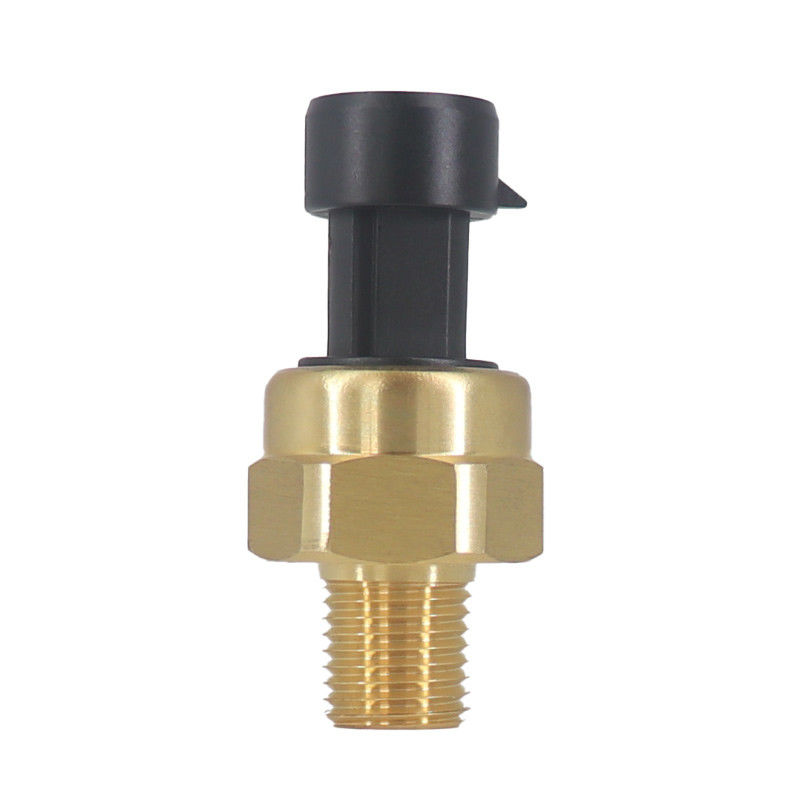

Brass Ceramic Capacitance Pressure Sensor With 0.5-4.5 VDC Output Signal

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.

Applicable media	Liquid, gas and steam
Pressure range	0-1000kPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	packard
Mechanical connection	1/4 NPT
Housing material	Brass

Company Information

Factory

Exhibition

Our Certificate

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection 6

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
