Name: 2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 20.00 USD
Availability: InStock

صفحه اصلی > محصولات > Air Pressure Sensor >

2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure

1/4NPT Air Pressure Sensor

2MPa Air Pressure Sensor

1/4NPT brass pressure sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

محدوده فشار:

0-2MPa،0-20bar،0-2000kPa

خروجی:

0.5-4.5V DC

منبع تغذیه:

4.75-5.25V DC

مواد:

برنج

اتصال دهنده فرآیند:

1/4 NPT

اتصال برق:

خروجی کابل

دقت:

1 ٪

برجسته کردن:

1/4NPT Air Pressure Sensor

2MPa Air Pressure Sensor

1/4NPT brass pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

هر قطعه در کارتن جداگانه با محافظ فوم، یا بنا به درخواست مشتری

زمان تحویل

8-10 روز کاری

شرایط پرداخت

D/A، D/P، T/T، Western Union، Paypal

قابلیت ارائه

2000 قطعه در هفته

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

بهترین قیمت رو بدست بیار

ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار

ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار

ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Customized Cable Outlet 1/4G 0.5 - 4.5V DC Output Air Pressure Sensor

Mini brass pressure sensor suitable for air oil water

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

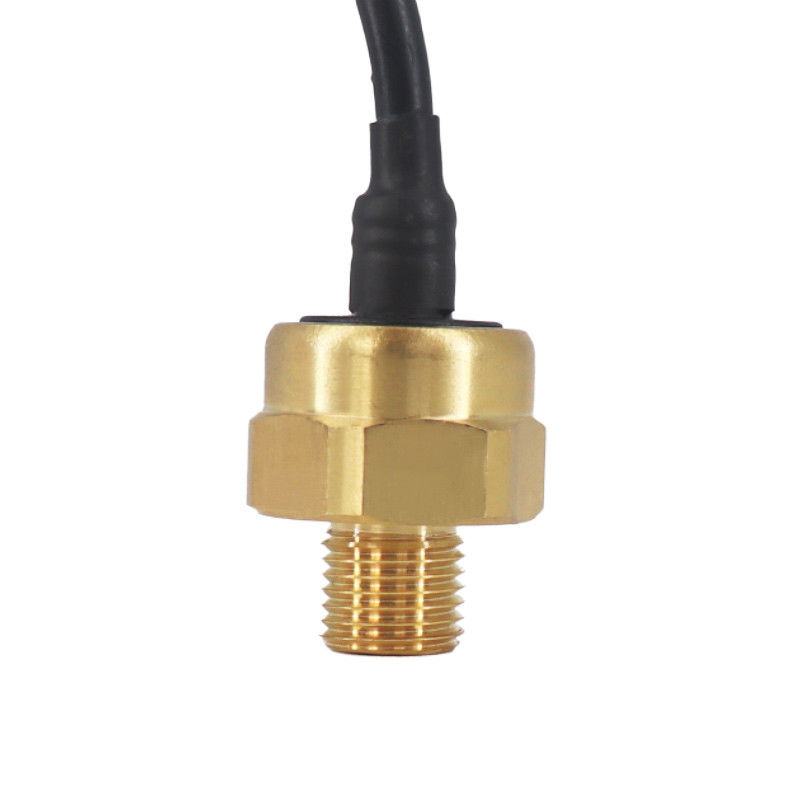

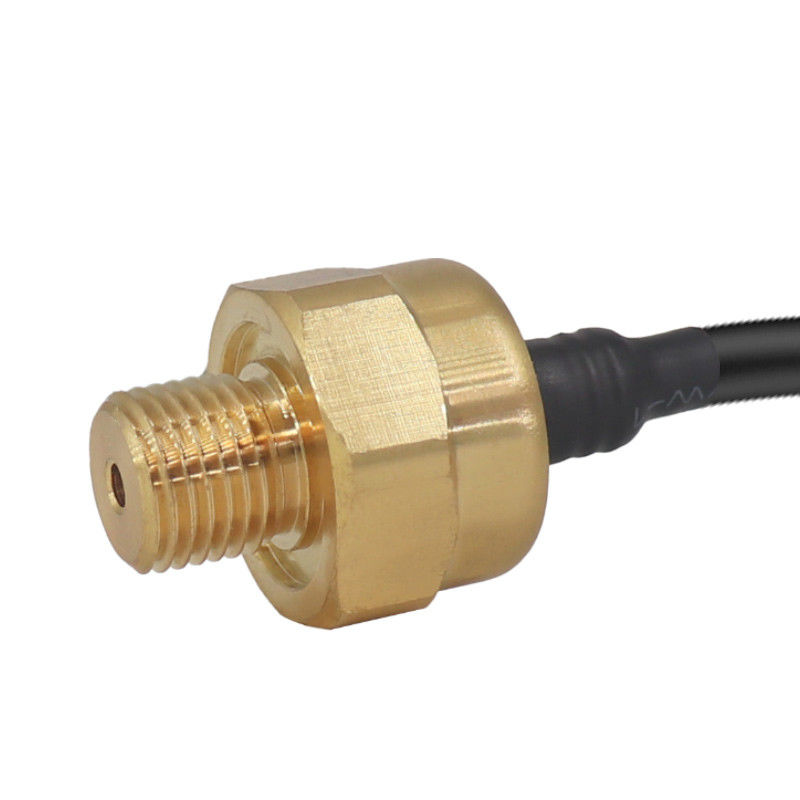

Product Show

2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure 0

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
