RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank

20MA Submersible Level Sensor

RS485 Submersible Level Sensor

RS485 submersible pressure transducer

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK8010-TT

تماس با ما

درخواست نقل قول

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank

Product Details

آنالوگ:

4-20 میلی آمپر، 1-5 ولت، 0.5-4.5، 0-5 ولت، 0-10 ولت، I2C

دیجیتال:

هارت، RS485 و غیره

دامنه اندازه گیری:

0-1 ~ 200MH2O

رسانه ها:

مایع، آب

دقت:

± 0.25٪ FS / سال، ± 0.5٪ FS / سال

مصالح مسکن:

فولاد ضد زنگ

منبع تغذیه:

24V/12V/5V/3.3V

حفاظت:

IP68

برجسته کردن:

20MA Submersible Level Sensor

RS485 Submersible Level Sensor

RS485 submersible pressure transducer

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته صادرات استاندارد

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، Western Union، Paypal

قابلیت ارائه

5000 قطعه در ماه

IP68 Stainless steel Dirty Water Submersible Level Sensor

بهترین قیمت رو بدست بیار

ویدئو

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

بهترین قیمت رو بدست بیار

ویدئو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

بهترین قیمت رو بدست بیار

ویدئو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

4-20MA Stainless Steel Liquid Water Sensor Level For Water Tank

Product Description
1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH₂O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

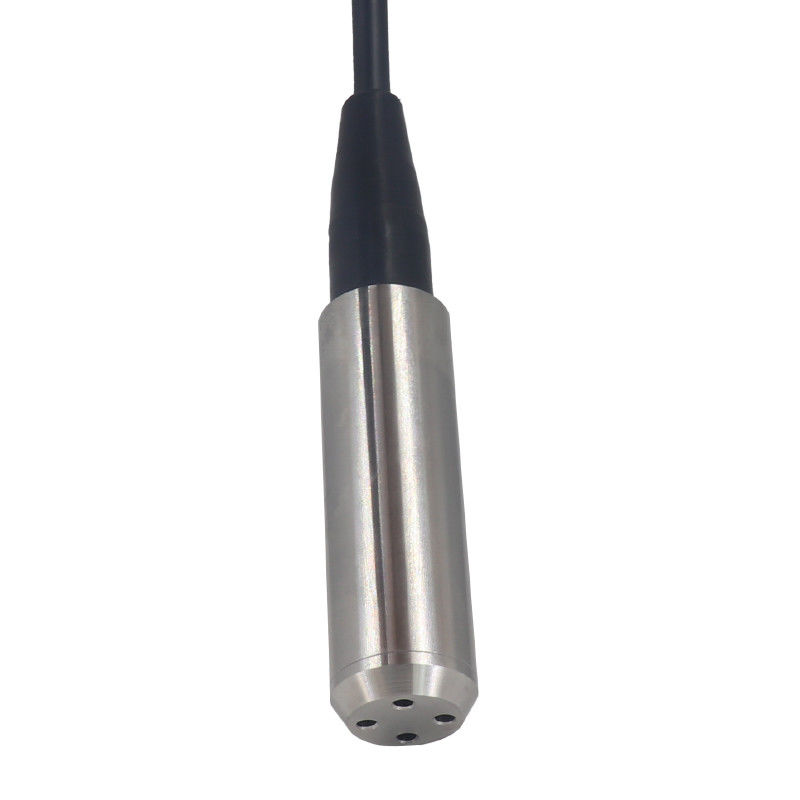

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank 0

Packaging & Shipping

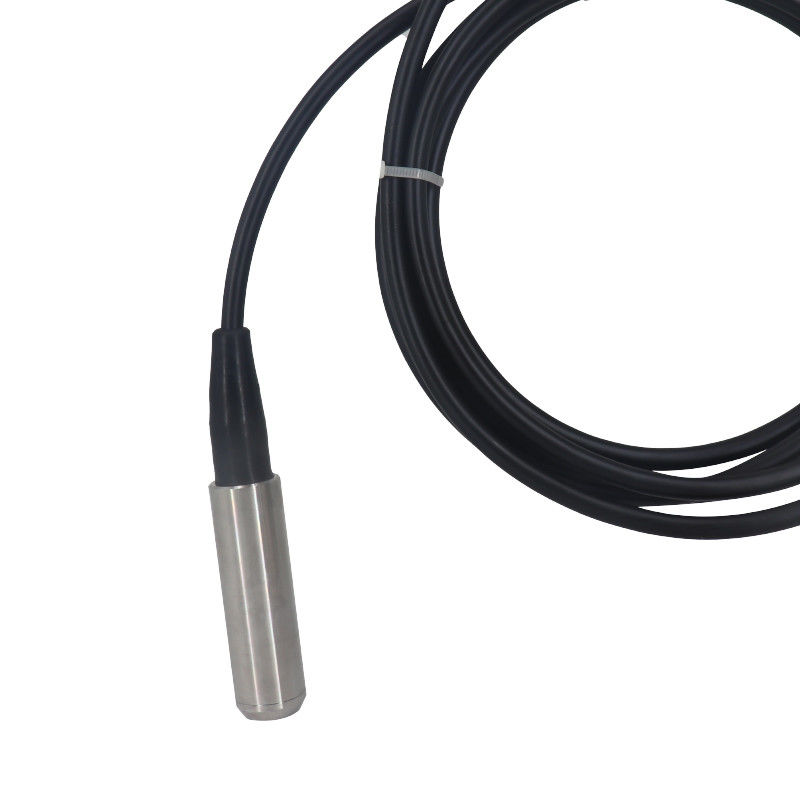

RS485 4-20MA Stainless Steel Submersible Level Sensor For Water Tank 2

Company Information

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
