صفحه اصلی > محصولات > Submersible Level Sensor >
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive

RS485 12V water level indicator

RS485 water tank automatic sensor

IP68 water tank automatic sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

CE

شماره مدل:

WNK8010-TT

تماس با ما
درخواست نقل قول
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive
Product Details
آنالوگ:
4-20 میلی آمپر، 1-5 ولت، 0.5-4.5، 0-5 ولت، 0-10 ولت، I2C
دیجیتال:
هارت، RS485 و غیره
دامنه اندازه گیری:
0-1 ~ 200MH2O
رسانه ها:
مایع، آب
دقت:
± 0.25٪ FS / سال، ± 0.5٪ FS / سال
مصالح مسکن:
فولاد ضد زنگ
منبع تغذیه:
24V/12V/5V/3.3V
حفاظت:
IP68
برجسته کردن:

RS485 12V water level indicator

,

RS485 water tank automatic sensor

,

IP68 water tank automatic sensor

Payment & Shipping Terms
مقدار حداقل تعداد سفارش
1 قطعه
قیمت
negotiable
جزئیات بسته بندی
بسته صادرات استاندارد
زمان تحویل
5-8 روز کاری
شرایط پرداخت
D/P، T/T، Western Union، Paypal
قابلیت ارائه
5000 عدد در ماه
RELATED PRODUCTS
قیمت خوب IP68 Stainless steel Dirty Water Submersible Level Sensor آنلاین ویدئو

IP68 Stainless steel Dirty Water Submersible Level Sensor

بهترین قیمت رو بدست بیار
قیمت خوب 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well آنلاین ویدئو

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

بهترین قیمت رو بدست بیار
قیمت خوب 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 آنلاین ویدئو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

بهترین قیمت رو بدست بیار
قیمت خوب 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile آنلاین ویدئو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

بهترین قیمت رو بدست بیار
تماس با ما
هم اکنون تماس بگیرید
Product Description

Anti-corrosive 4-20ma Underwater River Water Tank Level Sensor



Product Description

WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,



- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price





Product Specification



Output signals
Output 4-20mA,,0-5V, 1-5V,Customization
Measured range
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Parameters
Applicable media Liquid, Water
Accuracy ±0.2% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85℃
Process temperature -20~85℃
Compensation temperature -20~85℃
Protection class IP68

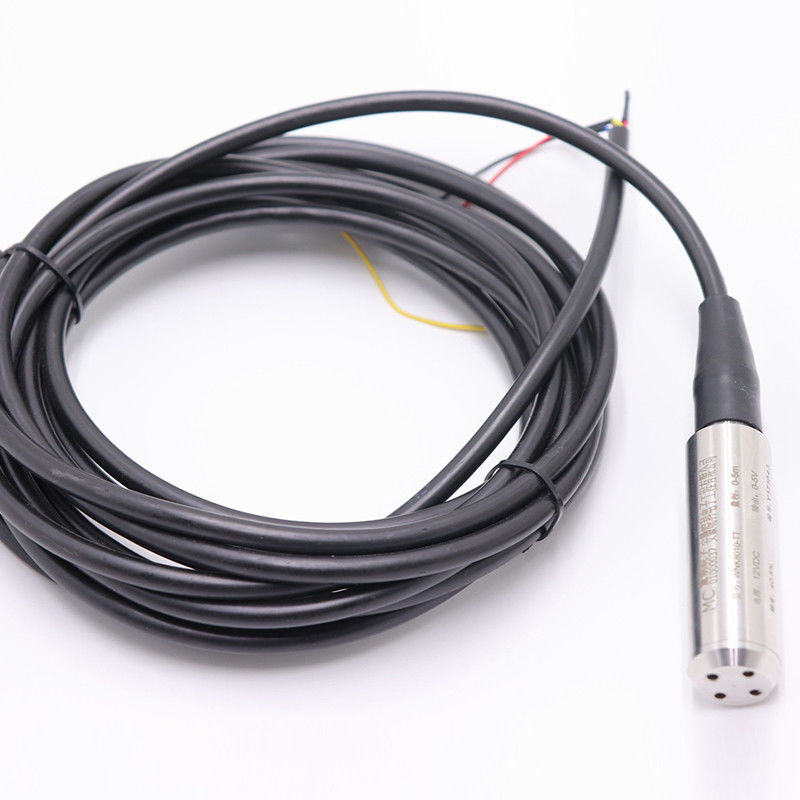

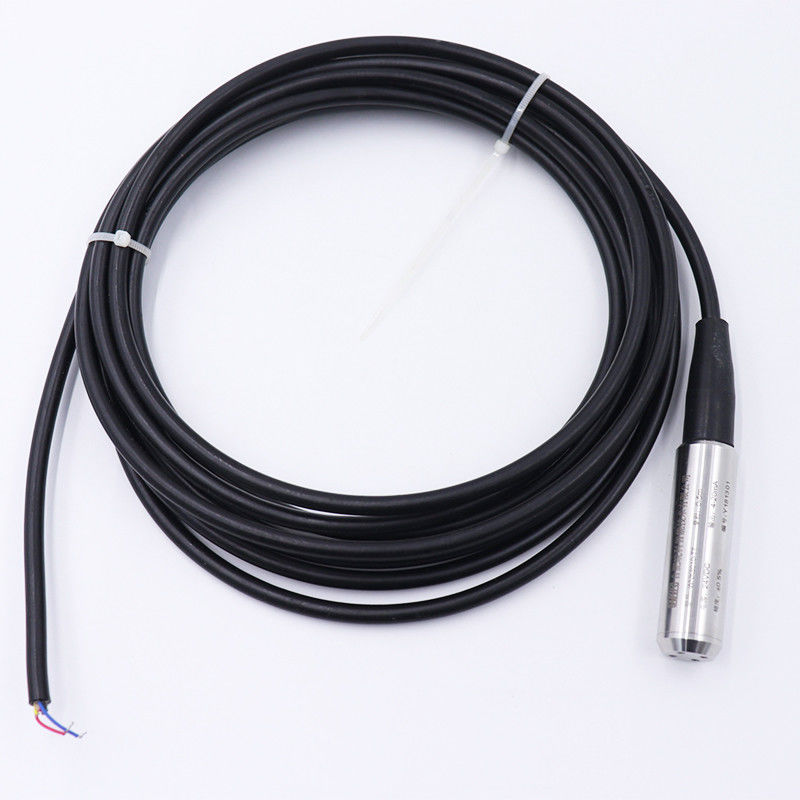

Product Show



Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 0Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 1

Ordering sheet
Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 2

Company Information



Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 3Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 4

Package and Shipping

Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 5Underwater Underwater 12v Water Level Automatic Indicator Anti Corrosive 6



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.

Tags：

stainless steel level sensor,liquid level sensor,submersible level transmitter

RS485 12V water level indicator,RS485 water tank automatic sensor,IP68 water tank automatic sensor

submersible level transmitter
