1MPa SST 5V Power Submersible Water Pressure Sensor Transducer

1MPa SST 5V Power Submersible Water Pressure Sensor Transducer

1MPa water pressure sensor

SST water pressure transducer

1MPa submersible pressure transducer

محل منبع:

چین

نام تجاری:

WNK

گواهی:

CE

شماره مدل:

WNK84mA

تماس با ما
درخواست نقل قول
Product Details
رسانه های اندازه گیری شده:
گاز مایع و بخار
سیگنال خروجی:
0.5-4.5v
دمای محیط:
-20-70c
اتصال الکتریکی:
Packard/Mini Din43650/Cable Outlet/M12*4P
دقت:
1% FS
محدوده فشار:
0-1000 کیلو پاسکال، 1 مگا پاسکال، 10 بار
منبع تغذیه:
5 ولت
مواد:
فولاد ضد زنگ
برجسته کردن:

1MPa water pressure sensor

,

SST water pressure transducer

,

1MPa submersible pressure transducer

Payment & Shipping Terms
مقدار حداقل تعداد سفارش
1 قطعه
قیمت
negotiable
جزئیات بسته بندی
بسته بندی کارتن خنثی یا طبق نیاز شما.
زمان تحویل
5-8 روز کاری
شرایط پرداخت
D/P، T/T، Western Union، Paypal
قابلیت ارائه
5000 قطعه / ماه
Product Description

SST Material 5V Power Supply Air Water Ceramic Capacitive Pressure Sensor



Product Description



Applicable Media Liquid Gas
Pressure Range 0-10Bar
Cell Ceramic Capacitive Pressure Sensor
Pressure Measurement Gauge Pressure Sealing Pressure
Output  0.5-4.5v
Power Supply 5V
Accuracy 1%FS
Working Temperature -20-70C
Ambient Temperature -40-110C
Temperature Drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature Drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical Connection Cable outlet
Mechanical Connection 1/4 NPT
Housing Material Stainless Steel

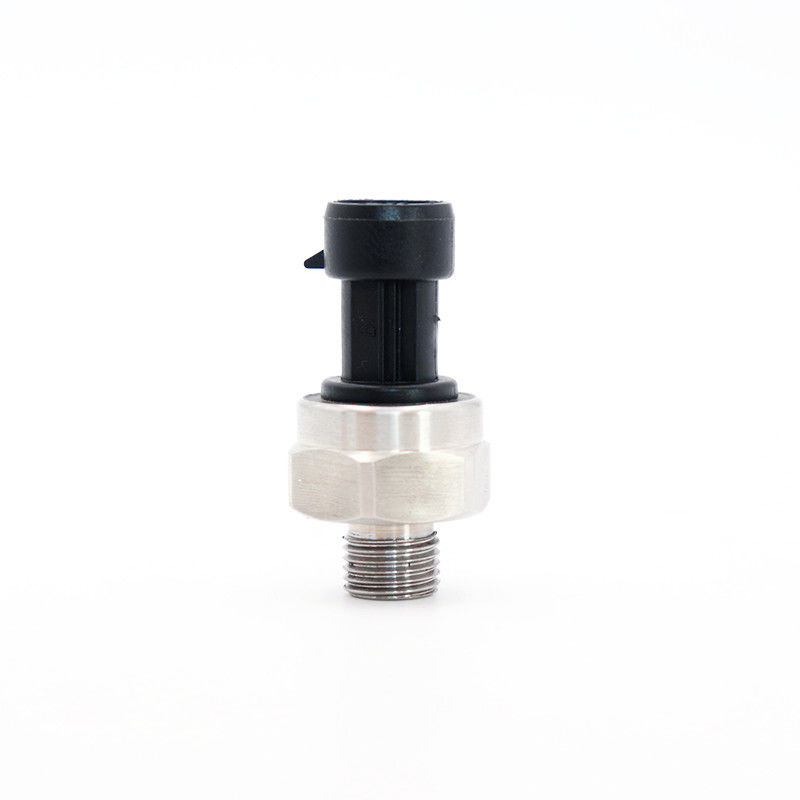

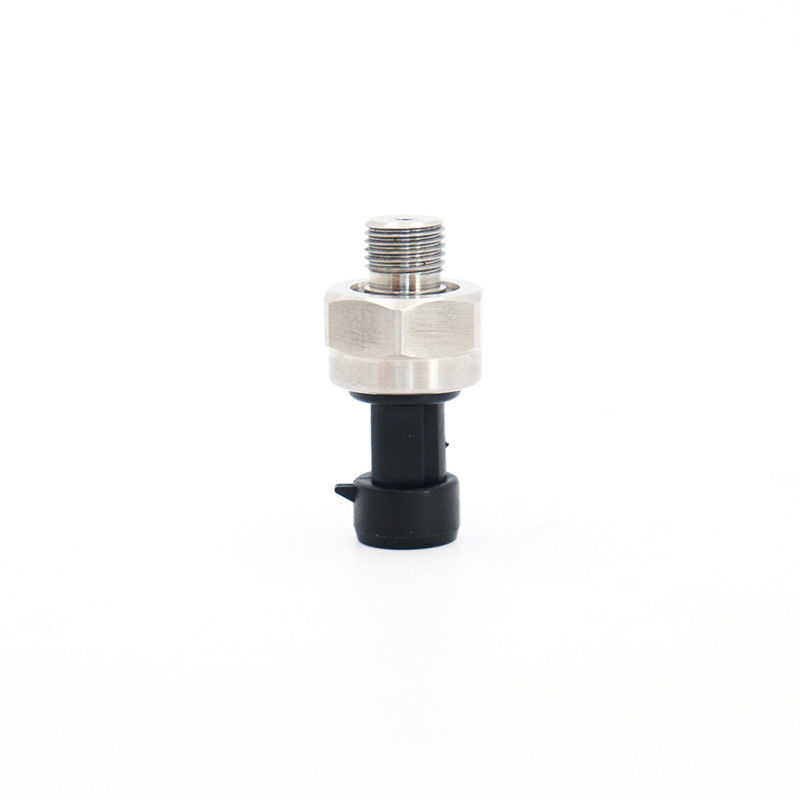

Product Show

1MPa SST 5V Power Submersible Water Pressure Sensor Transducer 01MPa SST 5V Power Submersible Water Pressure Sensor Transducer 1





Company Information

1MPa SST 5V Power Submersible Water Pressure Sensor Transducer 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
