صفحه اصلی > محصولات > Submersible Level Sensor >
3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor

3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor

Ultrasonic Submersible Level Sensor

2 Wire Submersible Level Sensor

0.1MPa Wastewater Level Sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

CE

شماره مدل:

WNK-YTS56

تماس با ما
درخواست نقل قول
Product Details
خروجی قیاسی:
2 سیم 4 ~ 20 میلی آمپر / بار 250 Ω، 4 سیم 4 ~ 20 میلی آمپر / بار 510 Ω
منبع تغذیه:
24 ولت DC
فشار روانی:
-0.02-0.1mpa
اندازه نصب:
نخ یا فلنج
خروجی دیجیتال:
اختیاری 485، 232
قطعنامه:
3 میلی متر یا 0.1٪
کلاس حفاظت:
ابزار نمایش -20 ~ + 60 ℃، پروب -20 ~ + 80 ℃
محدوده اندازه گیری:
0.5٪ ~ 1.0٪
برجسته کردن:

Ultrasonic Submersible Level Sensor

,

2 Wire Submersible Level Sensor

,

0.1MPa Wastewater Level Sensor

Payment & Shipping Terms
مقدار حداقل تعداد سفارش
1 قطعه
جزئیات بسته بندی
بسته بندی کارتن خنثی یا طبق نیاز شما.
زمان تحویل
5-8 روز کاری
شرایط پرداخت
D/P، T/T، Western Union، Paypal
قابلیت ارائه
5000/ قطعه/ ماه
RELATED PRODUCTS
قیمت خوب IP68 Stainless steel Dirty Water Submersible Level Sensor آنلاین ویدئو

IP68 Stainless steel Dirty Water Submersible Level Sensor

بهترین قیمت رو بدست بیار
قیمت خوب 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 آنلاین ویدئو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

بهترین قیمت رو بدست بیار
قیمت خوب 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile آنلاین ویدئو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

بهترین قیمت رو بدست بیار
تماس با ما
هم اکنون تماس بگیرید
Product Description

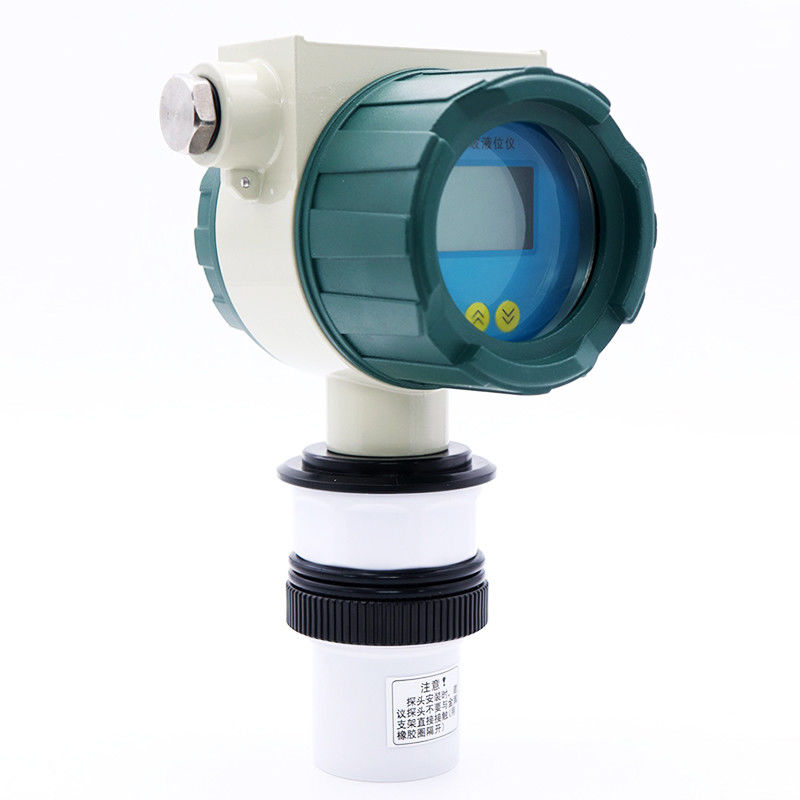

2 Wire 4-20mA Ultrasonic Liquid Fuel Water Level Sensor /Meter

Product Description

The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries





Features Integrated
Range 5m, 10m, 15m,20m,30m,40m,50m,60m
Measurement accuracy 0.5%-1.0%
Resolution 3mm or 1%(whichever is greater)
Display chinese Led or English Led
Analog output 2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
Digital output Optional 485, 232
Relay output Optional 2 sets of AC 250V / 5A or DC 30V / 5A
Powered Standard 24VDC, optional 220V AC + 15% 50HZ
Ambient temperature Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
Protection class Display instrument IP65, probe IP68
Probe Cable No
Installation size Thread or flange



3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 03mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 1

Company Information

3mm 0.1MPa 2 Wire Ultrasonic Submersible Level Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
