Name: 1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83mA
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM

smart type pressure transmitter

digital pressure transmitter

محل منبع:

چین

نام تجاری:

WNK

گواهی:

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

محدوده فشار:

0-2MPa،0-20bar،0-2000kPa

خروجی:

0.5-4.5V DC

منبع تغذیه:

4.75-5.25V DC

مواد:

برنج

اتصال دهنده فرآیند:

1/4 NPT

اتصال برق:

خروجی کابل

دقت:

1 ٪

برجسته کردن:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

هر قطعه در کارتن جداگانه با محافظ فوم، یا بنا به درخواست مشتری

زمان تحویل

8-10 روز کاری

شرایط پرداخت

D/A، D/P، T/T، Western Union، Paypal

قابلیت ارائه

2000 قطعه در هفته

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

OEM Low Cost Mini Water Oil Pressure Sensor Pressure Transmitter

Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	1/4 NPT
Housing material	Brass

Certification

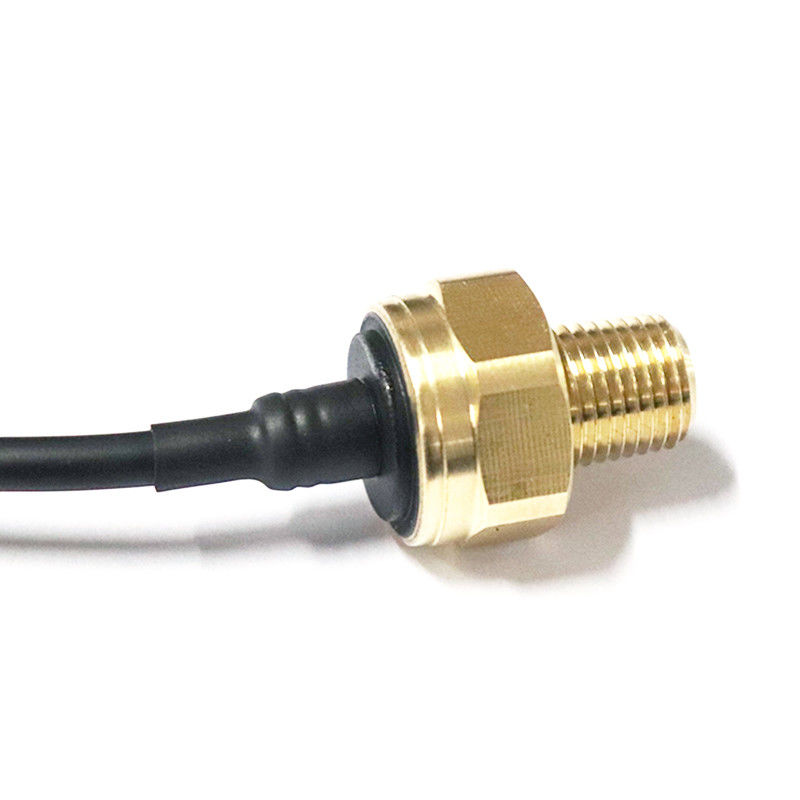

1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM 0

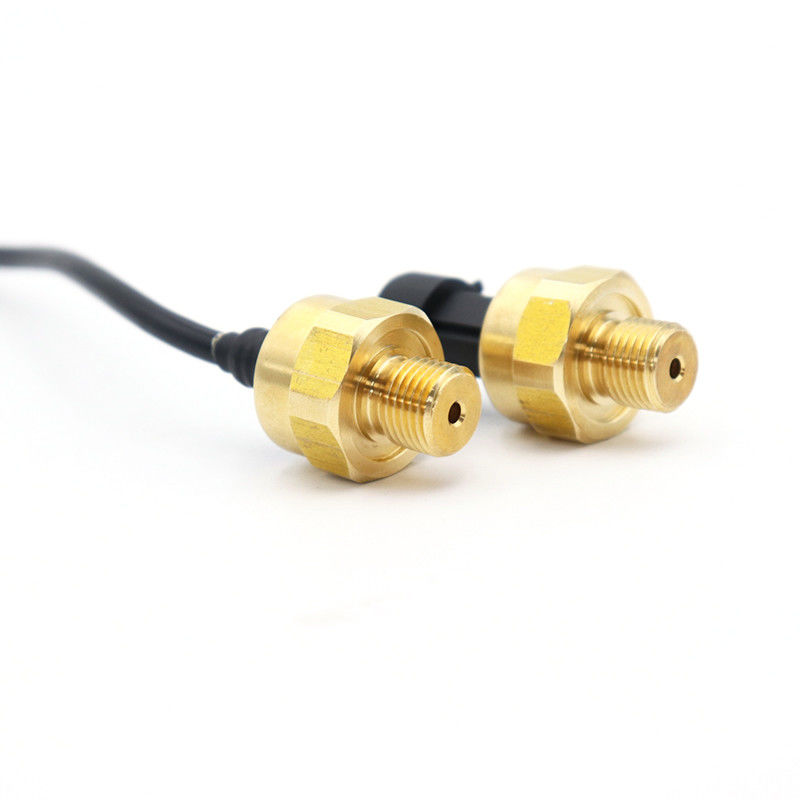

1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM 1

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM 2

1/4 NPT Process Connector Smart Pressure Transmitter Gas Pressure Transmitter OEM 3
