Name: Anti Explosion 1 - 5V Smart Type Pressure Transmitter With LED Display For Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

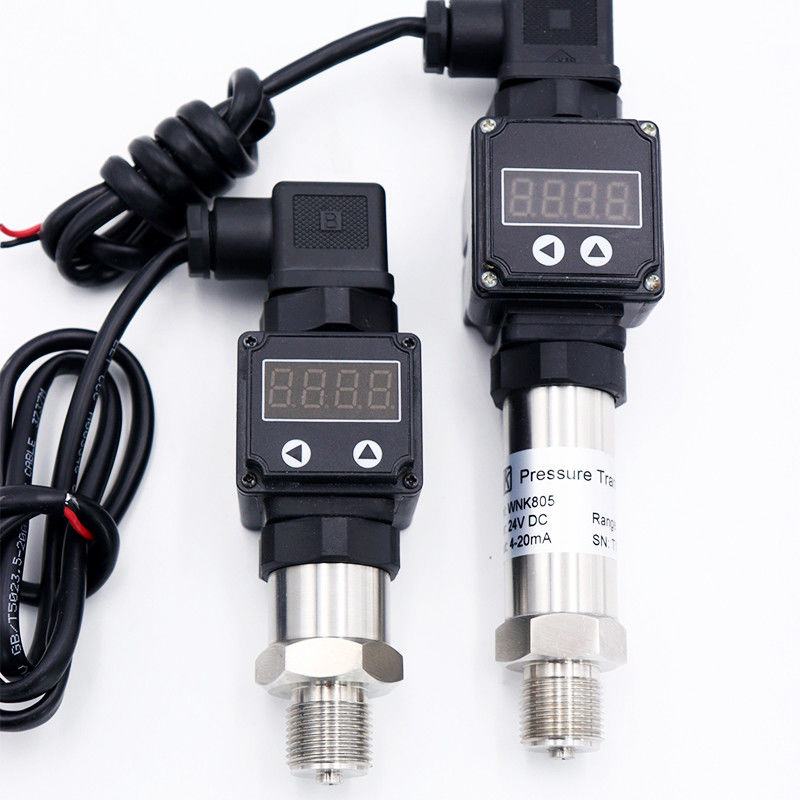

Anti Explosion 1 - 5V Smart Type Pressure Transmitter With LED Display For Gas

smart type pressure transmitter

digital pressure transmitter

محل منبع:

آنهویی، چین

نام تجاری:

WNK

گواهی:

ISO,Exia

شماره مدل:

WNK805

تماس با ما

درخواست نقل قول

Product Details

اندازه گیری رسانه:

مایع ، گاز و بخار

سیگنال های خروجی:

4 ~ 20mA ، 1-5V

دقت:

0.2٪، 0.25٪

محدوده فشار:

-100KPa~0، 0-10kPa، 100kPa......70MPa

کلاس حفاظت:

IP65

مصالح مسکن:

304SST (استاندارد)

منبع تغذیه:

10.5 ~ 30 ولت DC

برنامه:

اندازه گیری فشار

نمایش:

LED (اختیاری)

دیافراگم:

316 لیتر

برجسته کردن:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3 ~ 5 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

200 مجموعه در روز

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

Flush Diaphragm Stainless Steel 4-20mA Smart Pressure Transmitter for Sanitary Application

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	-100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

Anti Explosion 1 - 5V Smart Type Pressure Transmitter With LED Display For Gas 0

Anti Explosion 1 - 5V Smart Type Pressure Transmitter With LED Display For Gas 1

Anti Explosion 1 - 5V Smart Type Pressure Transmitter With LED Display For Gas 2
