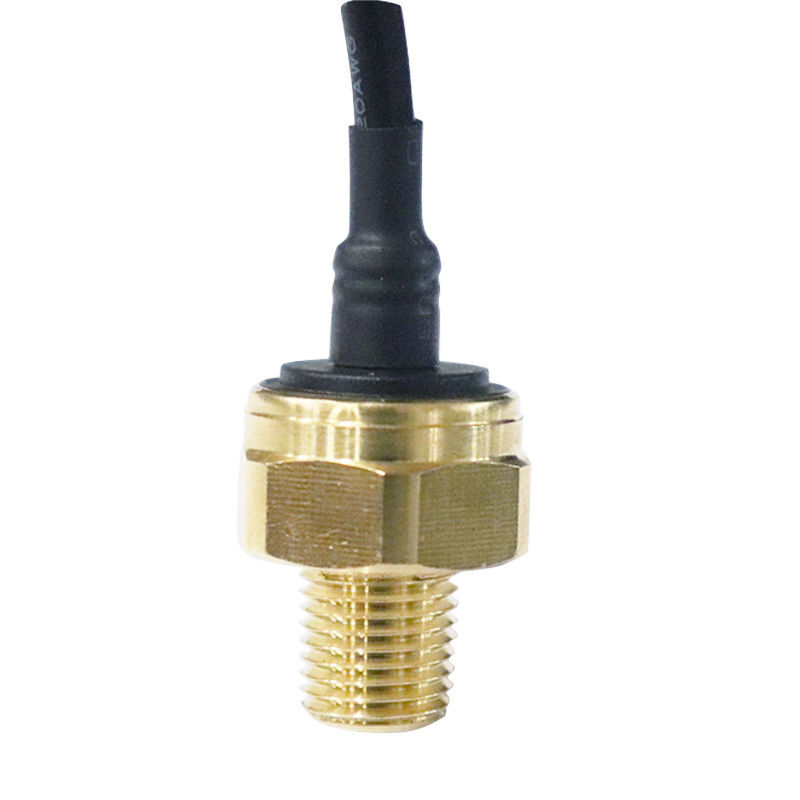

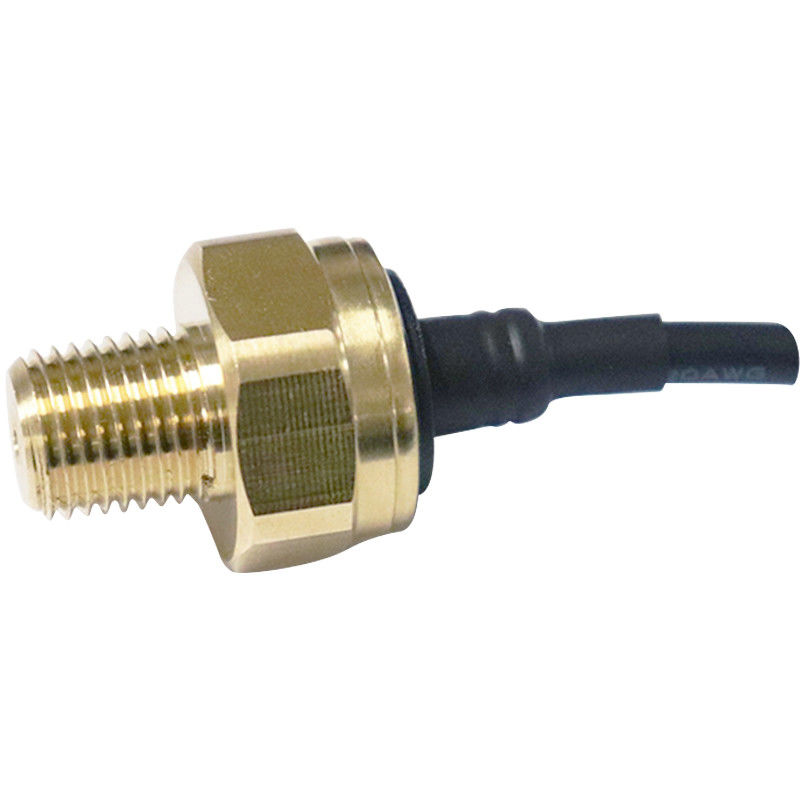

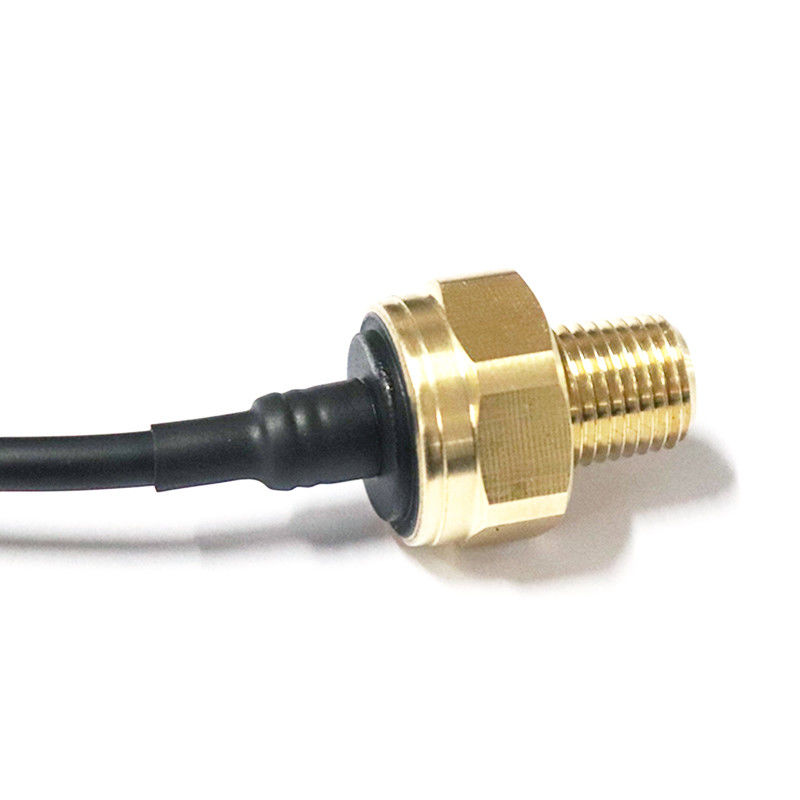

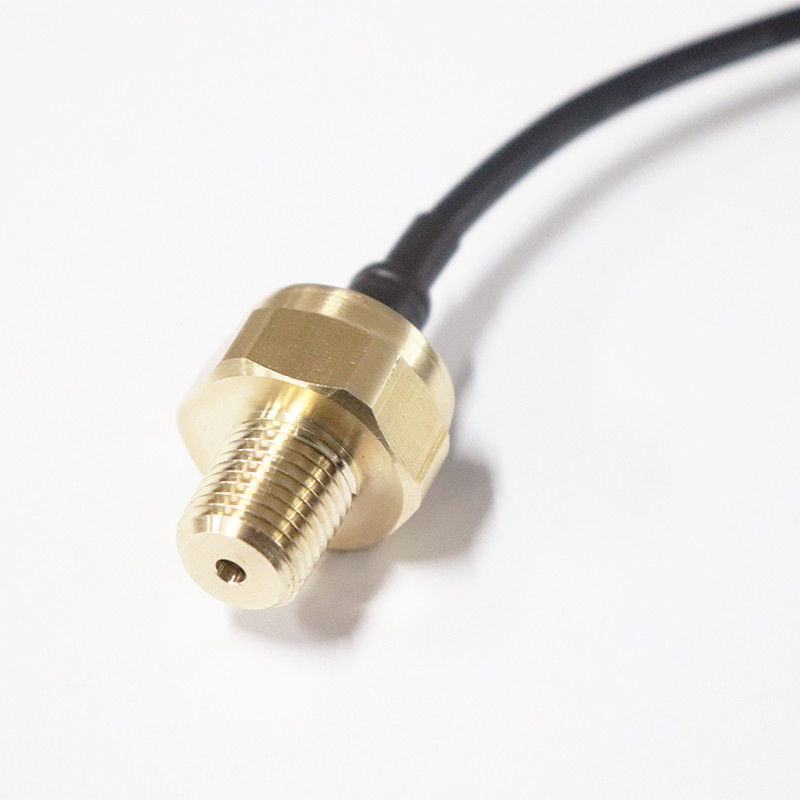

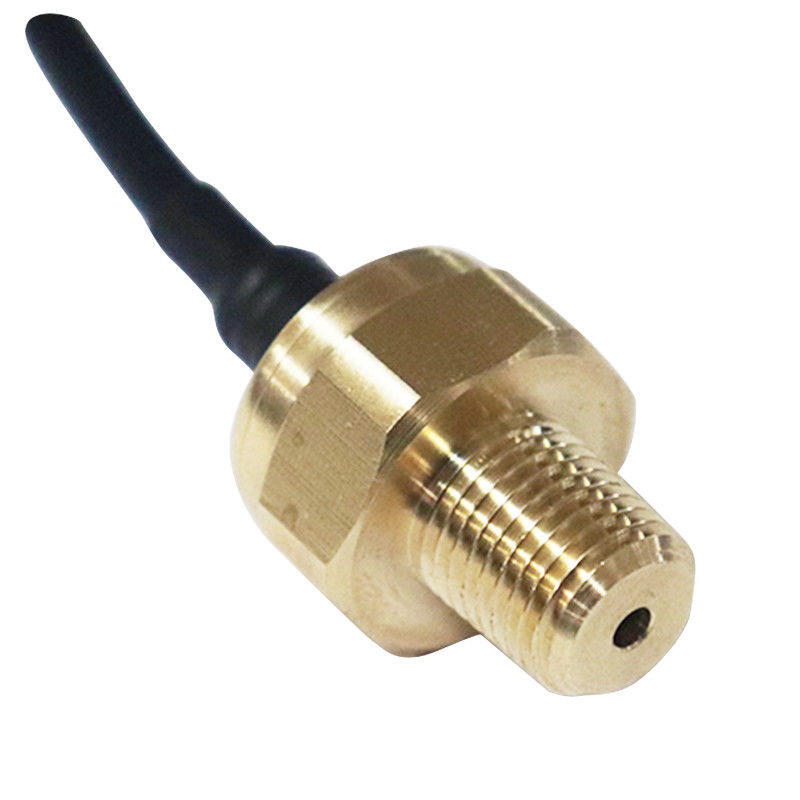

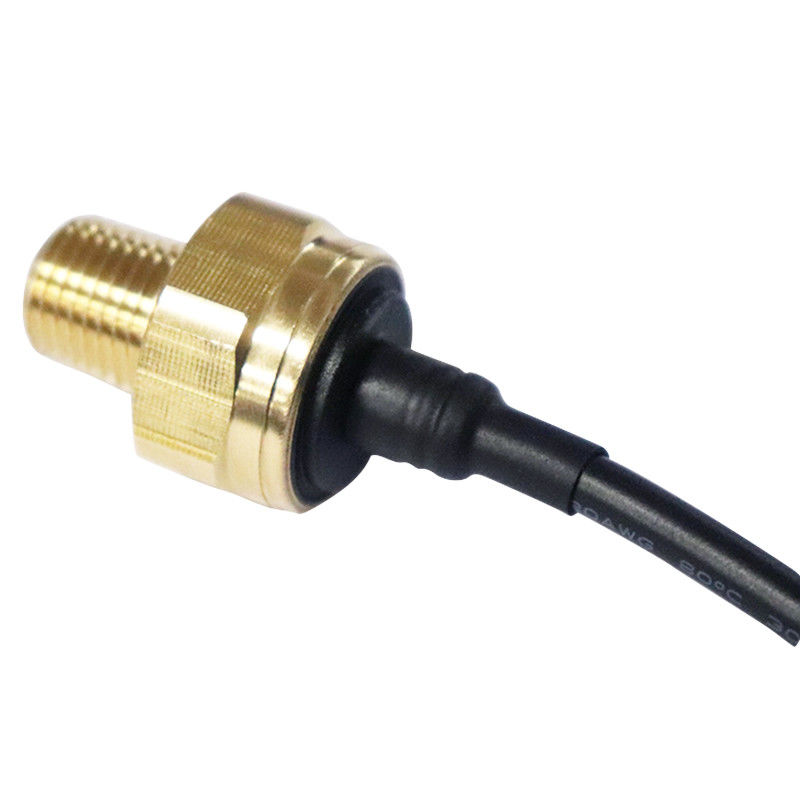

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor

air pressure transmitter

mini pressure sensor

محل منبع:

چین (سرزمین اصلی)

نام تجاری:

WNK

گواهی:

CE

شماره مدل:

WNK83mA

تماس با ما
درخواست نقل قول
Product Details
دقت:
1 ٪
رسانه های اندازه گیری شده:
مایع ، گاز و بخار
محدوده فشار:
0-1000 کیلو پاسکال
سیگنال خروجی:
0.5-4.5 VDC
منبع تغذیه:
4.75-5.25 VDC
دمای عملیاتی:
-20 تا 70
مواد:
برنج
اتصال فرآیند:
1/4NPT
اتصال الکتریکی:
خروجی کابل
ویژگی ها:
ضد خوردگی، ضد سایش، مقاومت در برابر ضربه
برجسته کردن:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
مقدار حداقل تعداد سفارش
1 عدد
قیمت
negotiable
جزئیات بسته بندی
جعبه کارتن صادراتی استاندارد
زمان تحویل
5-8 روز کاری
شرایط پرداخت
T/T، وسترن یونیون
قابلیت ارائه
5000+ قطعه + در ماه
RELATED PRODUCTS
قیمت خوب High Accuracy Air Pressure Sensor Packard Connector For Water Tank آنلاین ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار
قیمت خوب Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current آنلاین ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار
قیمت خوب 0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance آنلاین ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار
تماس با ما
هم اکنون تماس بگیرید
Product Description
Product Description

0.5V-4.5V Output Ceramic Capacitive Pressure Sensor for Water,Liquid,Gas

As a brass practical pressure transmitter, WNK83mA has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp, besides the voltage output is 0.5-4.5voltage DC. It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%.



Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Cable outlet
Mechanical connection 1/4 NPT
Housing material Brass

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 0


0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 10.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 20.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 30.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 40.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 50.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 6


Company Information

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 7

Factory

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 8

Exhibition

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 9

Our Certificate

0.5V-4.5V Output Air Pressure Sensor Anti - Wear High Accuracy Mini Pressure Sensor 10

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
