Barometric Air Pressure Sensor 0.5 - 4.5V Output For Arduino WNK83MA 1% F.S

mini pressure sensor

air pressure transmitter

محل منبع:

چین

نام تجاری:

WNK

گواهی:

ISO, CE

شماره مدل:

WNK83mA

تماس با ما

درخواست نقل قول

Product Details

دقت:

1% F.S

خروجی:

0.5-4.5v

محدوده فشار:

0-1000 کیلو پاسکال

منبع تغذیه:

4.75-5.25VDC

دمای کار:

-20 تا 70 درجه سانتی گراد

رسانه های اندازه گیری شده:

مایع، گاز، بخار

مصالح مسکن:

برنج

اتصال الکتریکی:

خروجی کابل

برجسته کردن:

mini pressure sensor

air pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 قطعه

قیمت

negotiable

جزئیات بسته بندی

جعبه کارتن صادراتی استاندارد یا با توجه به نیاز شما

زمان تحویل

5-7 روز کاری

شرایط پرداخت

L/C، T/T، Western Union، MoneyGram

قابلیت ارائه

5000 قطعه/قطعه در ماه

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

بهترین قیمت رو بدست بیار

ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار

ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار

ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

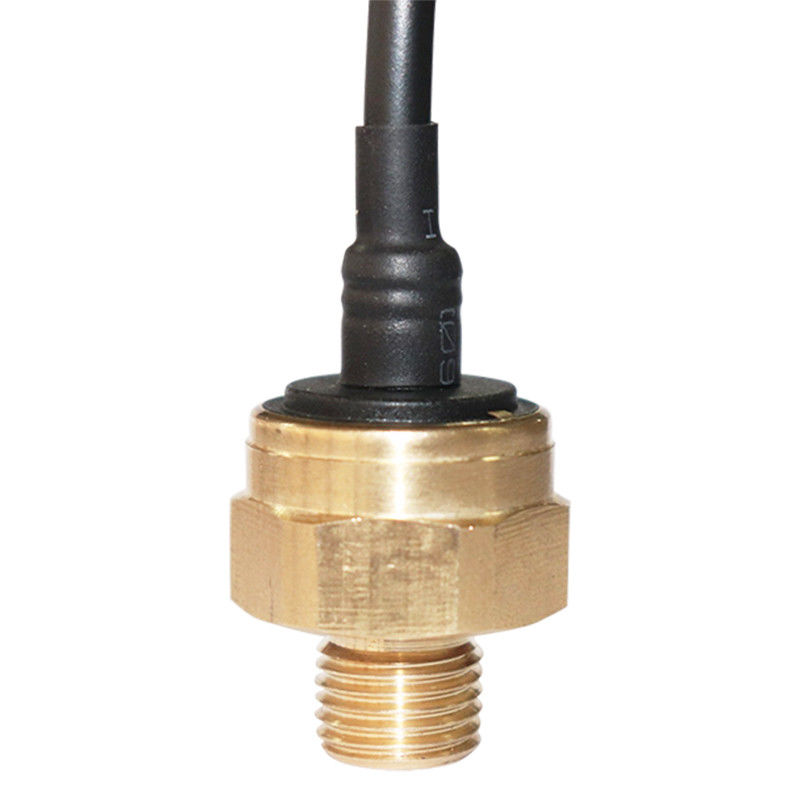

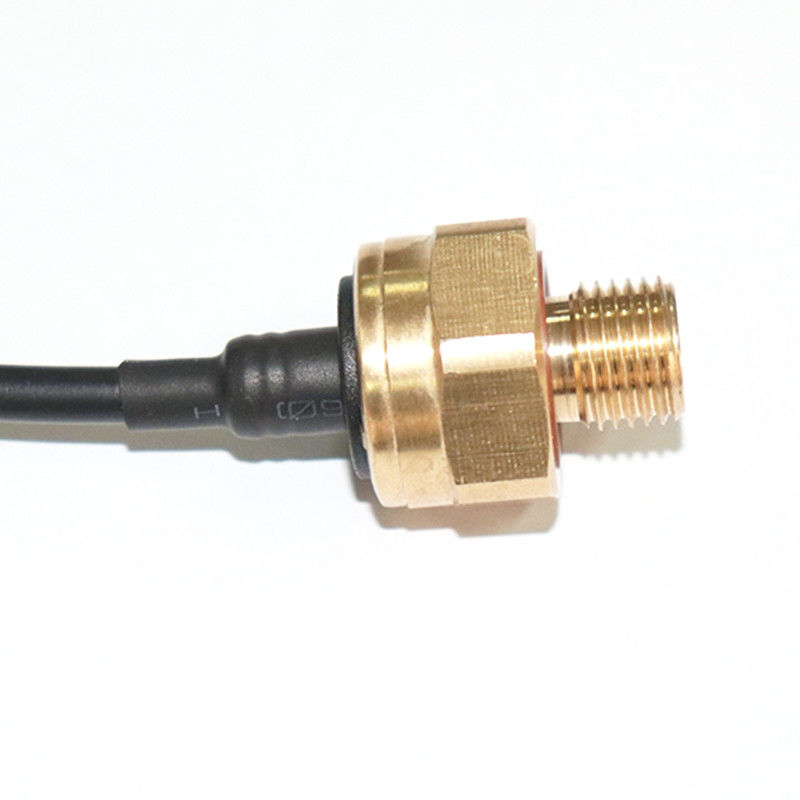

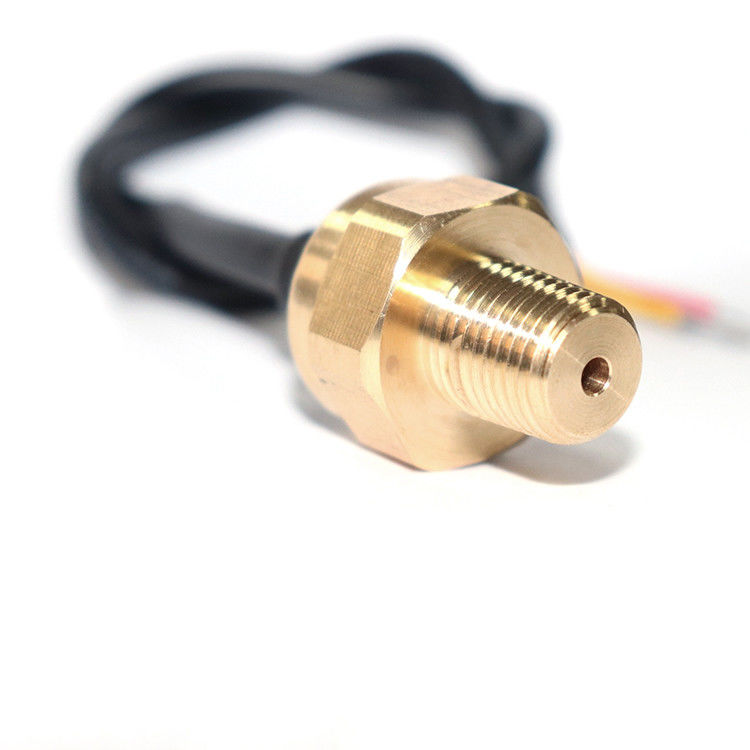

Barometric pressure sensor pressure sensor for arduino WNK83MA

Parameter

Applicable media	Liquid, gas, steam
Pressure range	0-1000Kpa
Pressure measurement	Gauge pressure, sealing pressure
Output	0.5-4.5V
Power Supply	4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability)	1%FS
Work temperature	-20~70°C
Storage temperature	-40~110°C
Temp drift(zero)	±0.15%FS(-20~70°C)
Temp drift(full range)	±0.15%FS(-20~85C)
Electrical connection	Parkard
Mechanical connection	Cable outlet
Housing material	Brass

Mechanical Dimension

Barometric Air Pressure Sensor 0.5 - 4.5V Output For Arduino WNK83MA 1% F.S 0

Barometric Air Pressure Sensor 0.5 - 4.5V Output For Arduino WNK83MA 1% F.S 3

Company Information

Factory

Barometric Air Pressure Sensor 0.5 - 4.5V Output For Arduino WNK83MA 1% F.S 5

Exhibition

Barometric Air Pressure Sensor 0.5 - 4.5V Output For Arduino WNK83MA 1% F.S 6

Our Certificate

Packing

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
