Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

air pressure transmitter

mini pressure sensor

محل منبع:

چین

نام تجاری:

WNK

گواهی:

ISO, CE

شماره مدل:

WNK83mA

تماس با ما
درخواست نقل قول
Product Details
دقت:
1% F.S
خروجی:
0.5-4.5v
محدوده فشار:
0-1000 کیلو پاسکال
منبع تغذیه:
4.75-5.25VDC
دمای کار:
-20 تا 70 درجه سانتی گراد
رسانه های اندازه گیری شده:
مایع، گاز، بخار
مصالح مسکن:
برنج
اتصال الکتریکی:
خروجی کابل
برجسته کردن:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
مقدار حداقل تعداد سفارش
1 قطعه
قیمت
negotiable
جزئیات بسته بندی
جعبه کارتن صادراتی استاندارد یا با توجه به نیاز شما
زمان تحویل
5-7 روز کاری
شرایط پرداخت
L/C، T/T، Western Union، MoneyGram
قابلیت ارائه
5000 قطعه/قطعه در ماه
RELATED PRODUCTS
قیمت خوب High Accuracy Air Pressure Sensor Packard Connector For Water Tank آنلاین ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار
قیمت خوب Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current آنلاین ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار
قیمت خوب 0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance آنلاین ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار
تماس با ما
هم اکنون تماس بگیرید
Product Description

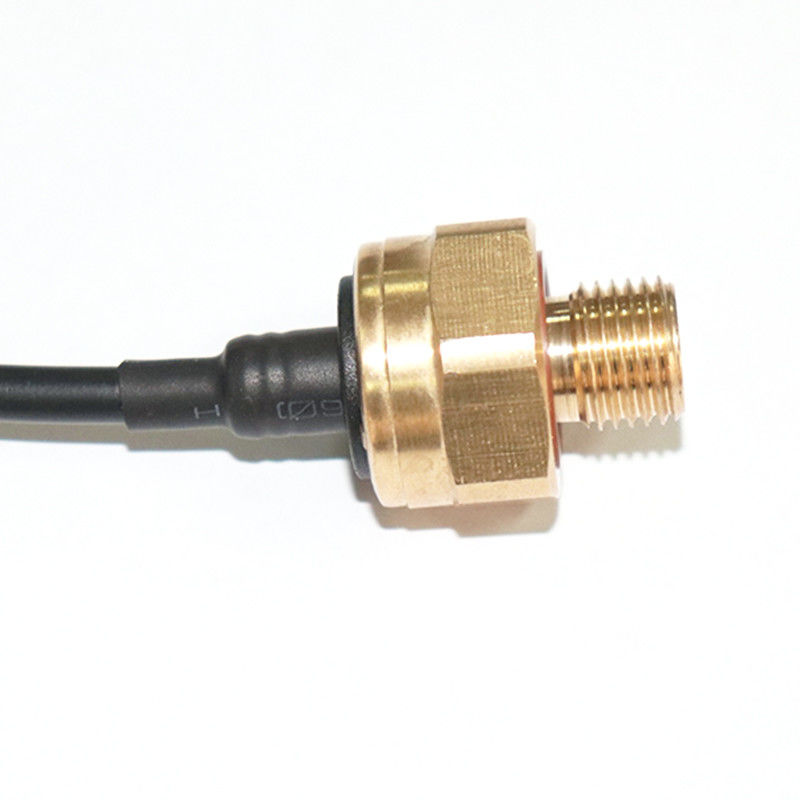

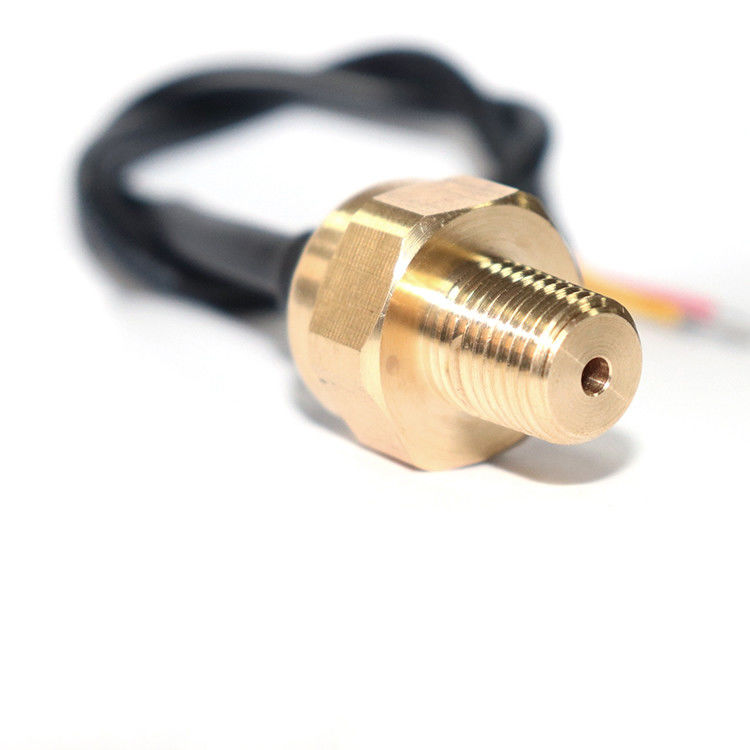

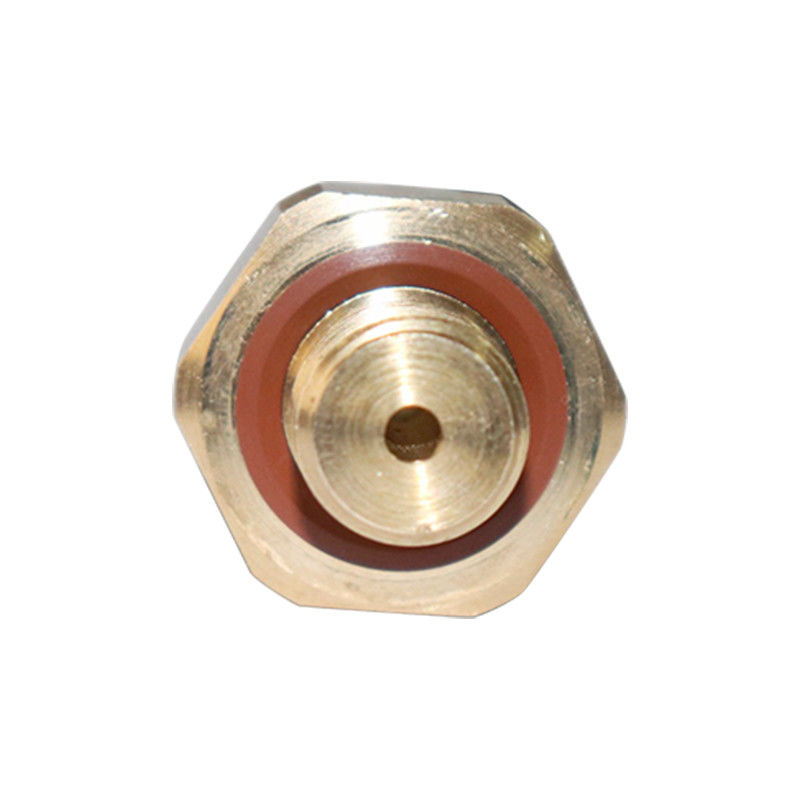

Mini foot pressure sensor pressure transmitter with brass housing with customize electrical connection



Founded in 2004, Hefei WNK Smart Technology Co Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters. We are committed to providing our customers with pressure sensors, pressure transmitters and technical solutions in various type of applications

The company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.

With strict and scientific management system and management mechanism, WNK has passed the I S O 9 0 0 1: 2 0 1 5 quality management system certification of the classification society. WNK is committed to research and developing of new products and technical innovations. With continuous efforts aiming at advancement of cutting-edge technologies, WNK has been undertaking some innovative projects of the State Ministry of Science and Technology, and was recognized as a “small technological giant” cultivation enterprise by Hefei high-tech zone.



Parameter



Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard
Mechanical connection Cable outlet
Housing material Brass









Mechanical Dimension



Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 0





Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 1





Company Information



Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 2


Factory


Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 3




Exhibition


Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 4





Our Certificate
Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 5





Packing
Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 6

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
