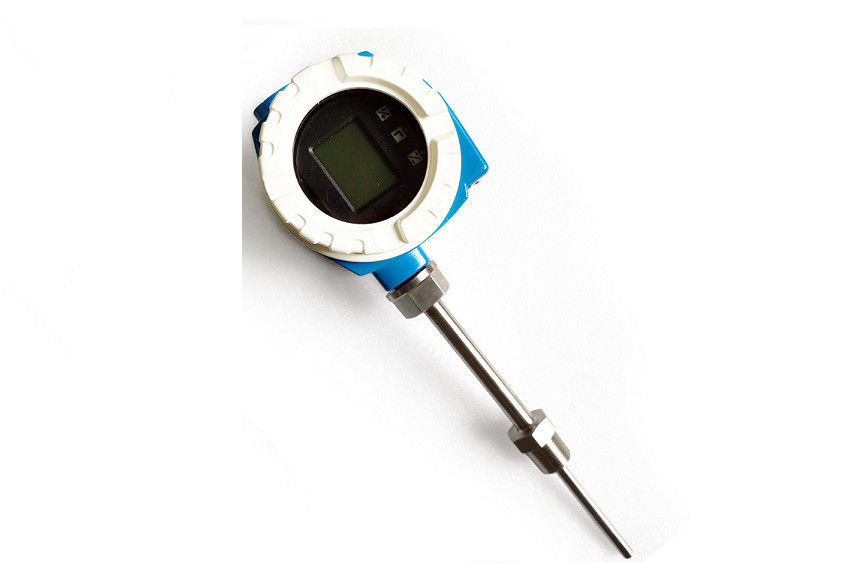

Name: LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK6T
Price: 403.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Temperature Transmitter >

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

liquid temperature sensor

industrial temperature sensor

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

ISO

شماره مدل:

WNK6T

تماس با ما

درخواست نقل قول

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

Product Details

محدوده دما:

-270 ~ 800 ℃ (مقاومت حرارتی PT100)

نوع:

سنسور دما

دقت را اندازه گیری کنید:

0.2 ٪ FS

مواد:

محفظه آلومینیومی

خروجی سیگنال:

4-20 میلی آمپر، rs485

ورودی ولتاژ:

24 ولت (استاندارد)

ضد:

ExiaII CT4

اندازه گیری رسانه:

مایع ، گاز و بخار

برجسته کردن:

liquid temperature sensor

industrial temperature sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3-8 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

44mm Diameter Hart RTD Liquid Gas Temperature Transmitter

بهترین قیمت رو بدست بیار

Wireless Smart Temperature Transmitter For Timer Button Alarm Wake

بهترین قیمت رو بدست بیار

CE Resolution 0.1C 18v 36V Temperature Humidity Sensor

بهترین قیمت رو بدست بیار

Steam 24V PT100 Head Mounted Temperature Transmitter

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

WNK temperature transmitter is Cost-effective model. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.

Features

1. Long-term drift<0.1/year
2. Install easily, more flexiable
3. 4~20mA/RS485 output

4. Self-diagnostics function

Specifications

Measuring media	liquid, gas
Measuring range	-270~800 ℃ (PT100 thermal resistor)
	0~1300℃, (Thermocouple K)
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA, RS485
Digital Accuracy	±0.04℃, PT100 input
Internal cold end compensation error	＜0.25℃±0.1%/10℃
Temperature drift	±0.05%/10℃full-scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	＜0.005%/V full-scale range
Long term drift	＜0.1/year
Allowable temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85℃	-40...60℃	-40...95℃
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326
