Name: High Accuracy Smart Pressure Transmitter With Adjustable LED Display
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805-L
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

High Accuracy Smart Pressure Transmitter With Adjustable LED Display

smart type pressure transmitter

smart pressure sensor

محل منبع:

چین، هفی

نام تجاری:

WNK

گواهی:

CE, SGS

شماره مدل:

WNK805-L

تماس با ما

درخواست نقل قول

Product Details

محدوده ورودی:

-100kpa.... 60Mpa

خروجی سیگنال:

4-20ma، 0.5-4.5VDC، IIC

ولتاژ ورودی:

24 ولت DC

متوسط:

آب، گاز، بخار

فشار بیش از حد:

150% FS

ثبات طولانی مدت:

<0.2% FS در سال

دقت:

0.5% Fs، 1.0% FS

برجسته کردن:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

2 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

5000 واحد در ماه

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

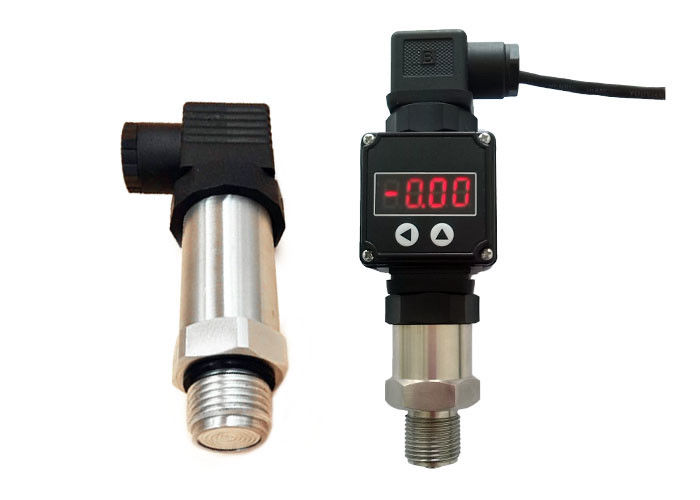

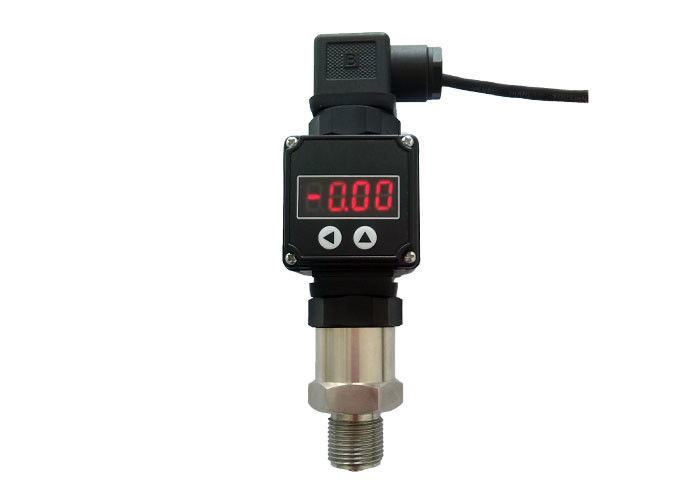

High Accuracy 4-20ma Smart Pressure Transmitter With Adjustable LED Display

WNK805 Series compact pressure transmitter has excellent reliability,practicability,flexibility and diversity,widely applied in aerospace,petroleum,chemical industry,electricity and water conservancy, industrial process, pressure measurement and control.
This transmitter features integrated construction, rigid and robust, high measuring accuracy, good long term stability, and is suitable for pressure measurement in general industry applications.

Features

Industrial testing and application
Hydraulic and pneumatic control system
Pumping station and water treatment
Aviation field and navigation field
industrial manufacturing
Other custom applications

Specifications

Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Output signals	4~20mA, 1-5V for optional
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
