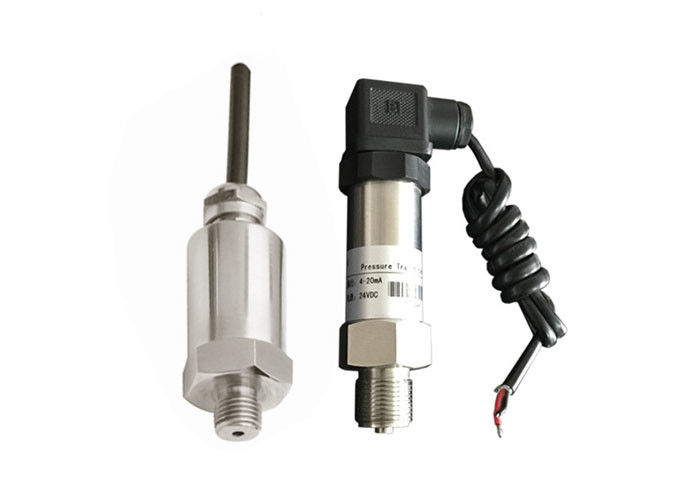

Name: General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure

smart type pressure transmitter

digital pressure transmitter

محل منبع:

هیفی، CN

نام تجاری:

WNK

گواهی:

CE, SGS, ISO9001, NEPSI

شماره مدل:

WNK805

تماس با ما

درخواست نقل قول

General Industrial Smart Pressure Transmitter For Hydraulic / Liquid / Water Level Measure

Product Details

فشار ورودی:

0-0.2 ~ -100kPa; 0-0.2 ~ -100 کیلو پاسکال؛ 0-0.2 ~ 1000kPa 60000kPa 0-0.2 ~

دقت:

0.2 ٪ FS ، 0.5 ٪ FS

ورودی برق:

24V DC، 12-30VDC

دمای کاری:

-20-70c

رسانه قابل اجرا:

آب، گاز، بخار، مایع، روغن

بندر فشار:

G1/2، سفارشی دیگر

قطعات خیس شده:

SS304

گارانتی:

12 ماه

برجسته کردن:

smart type pressure transmitter
,
digital pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

2 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T، وسترن یونیون

قابلیت ارائه

5000 واحد در ماه

RELATED PRODUCTS

ویدئو

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

General Industrial Application Smart Pressure Transmitter For Hydraulic, Liquid, Water Level Measure

Description

WNK small size pressure transmitter is widely applied in gauge or absolute pressure measurement in fields of aerospace, and adopts imported high accuracy and high stability chips and excellent assembly technology, Applicable for irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

Product Feature

Wide measuring range
Stainless steel structure,various pressure port
Laser marking,exquisite shape,beautiful and meticulous
Intelligent circuit board,no moving parts,stable and reliable
Efficient lightning protection and strong anti RFI&EMI protection
Explosion proof ExiaIICT6

Data Sheet

Compact Pressure Transmittter with SS304 Housing

Pressure range 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa

Rangedown 100:1

Permissible temperature Compensation Temperature Media Temperature Environment Temperature Storage Temperature

-30~70℃ -20~85℃ -20~85℃ -45~85℃

Accuracy 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS

Output signals 4~20mA, 0~5V, 1~5V, 0~10V

Long-term stability 0.25%FS/year

Power supply 24VDC

Protection class IP65

Electrical connection DIN43650, M12, Direct lead, Small Hirschman

Mechanical connection G1/2, M20*1.5,1/2NPT,1/4NPT,customization

Repeat 0.05, 0.1%FS

Overload 1.5~2 times

Housing material SS304

Tags：

smart type pressure transmitter,digital pressure transmitter,smart pressure sensor

smart type pressure transmitter,digital pressure transmitter

smart pressure sensor

درخواست خود را مستقیماً برای ما ارسال کنید

Compact Pressure Transmittter with SS304 Housing
Pressure range	0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
Rangedown	100:1
Permissible temperature	Compensation Temperature	Media Temperature	Environment Temperature	Storage Temperature
	-30~70℃	-20~85℃	-20~85℃	-45~85℃
Accuracy	0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS
Output signals	4~20mA, 0~5V, 1~5V, 0~10V
Long-term stability	0.25%FS/year
Power supply	24VDC
Protection class	IP65
Electrical connection	DIN43650, M12, Direct lead, Small Hirschman
Mechanical connection	G1/2, M20*1.5,1/2NPT,1/4NPT,customization
Repeat	0.05, 0.1%FS
Overload	1.5~2 times
Housing material	SS304
