Name: Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK55
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

smart type pressure transmitter

smart pressure sensor

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

CE, SGS

شماره مدل:

WNK55

تماس با ما

درخواست نقل قول

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

Product Details

ورودی:

-100kpa ... 60Mpa

خروجی سیگنال:

4-20 میلی متر، 0.5-4.5V DC

پایداری بلند مدت:

0.075 ٪

حفاظت از ورود:

IP67

قطعات خیس شده:

304SS، 316SS

منبع تغذیه:

24 ولت DC

ارتباط:

هارت پروفیباس FF

برجسته کردن:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3 ~ 5 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

200 مجموعه در روز

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

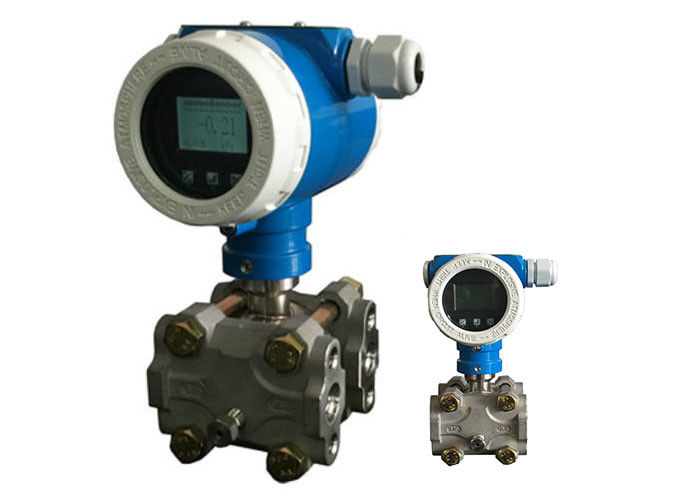

Explosion Proof Industrial Measure Smart Pressure Transmitter with 4-20ma Output

Product Features

1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. Module design: C
8. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.

Applications
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Specifications

Applicable media	liquid, gas and steam
Pressure range	-0.1Kpa - High Pressure up to 700 Bar
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Output signals	4~20mA, Hart, Profibus-PA for option, FF per request
Display	LCD, or pointer optional
Housing material	Aluminum14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	4kg (without bracket or process connection)
