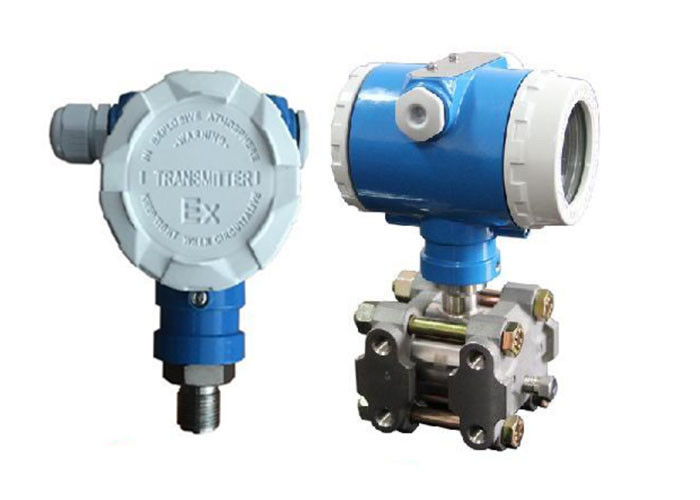

Name: 0.075%FS HART Communication Smart Differential Pressure Sensor With 4-20ma Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK4S
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

0.075%FS HART Communication Smart Differential Pressure Sensor With 4-20ma Output

smart type pressure transmitter

smart pressure sensor

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

CE, SGS

شماره مدل:

WNK4S

تماس با ما

درخواست نقل قول

0.075%FS HART Communication Smart Differential Pressure Sensor With 4-20ma Output

Product Details

ورودی:

-100Kpa - 600bar

خروجی آنالوگ:

4-20 میلی متر، 0.5-4.5 ولت

رسانه قابل اجرا:

آب، گاز، مایع، نفت

تائیدیه:

CE، RHOS

رتبه IP:

IP66، IP67

مصالح مسکن:

آلومینیوم

منبع تغذیه:

12 تا 30 ولت DC

ضد انفجار:

ExiaIICT4

برجسته کردن:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3 ~ 5 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

200 مجموعه در روز

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

High Accuracy 0.075%FS HART Communication Smart Differential Pressure Transmitter With 4-20ma Output

Features

Accurate, Stable, Reliable.
High reference accuracy up to 0.075
High long-term stability
Range ratio 100:1.
Module design, electronic module replaceable and display unit free from calibration.
Menu oriented man-machine interface operation, supporting local display.
Supporting factory reset
HART, PROFIBUS-PA, or FF protocol for option.

Application
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Technical Data

Measured media	liquid, gas and steam
Pressure range	-100KPa~70MPa
Output signals	4~20mA, Modbus-RS485, 1-5V
Accuracy	0.2%
Stability	±0.3% of URL for 5 years
Temperature drift	±0.05% of URL/10ºC
Display	LCD, or pointer optional
Housing material	Aluminum14
Process connection	M20×1.5;G1/2;1/2NPT; flush diaphragm
Protection class	IP66/67
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Dimension	with display: 84111052 (mm)
Net Weight	1.1kg (without bracket or process connection)

Ordering sheet
