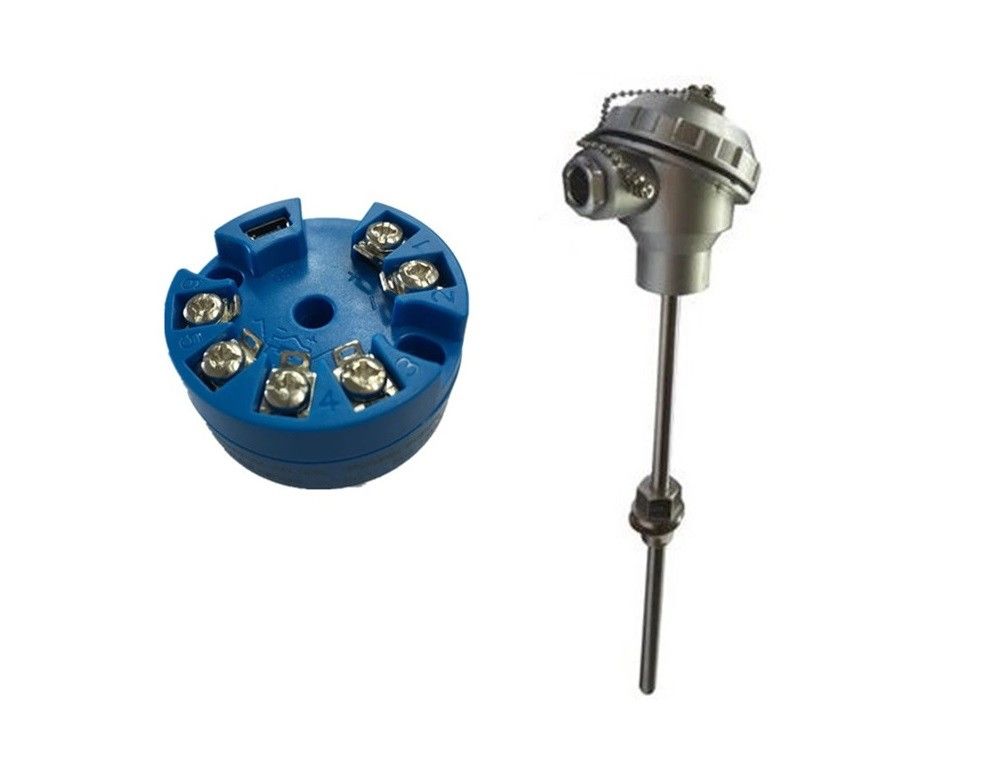

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

Instruction

WNK623 4~20mA two-wire integrated circuit board is specifically designed for intelligent temperature transmitters. With the highly-integrated circuit cored with microprocessor, it reliably achieves PT100 thermal resistor signal acquisition, processing and loop output, and also provides single bus digital interface and dedicated configurator to achieve full digital debugging and calibration. it particularly well-suited for producing and manufacturing two-wire intelligent temperature transmitters.

Features

• Two-wire work mode
• Pt100 thermal resistance full measurement range
• Thermal resistance four-wire measurement and automatically eliminating the lead resistance
• Thermal resistance disconnection fault prompts and output processing;
• Independent setting for temperature transmission output range
• High accuracy, low temperature drift
• Single wire communication interface, dedicated configurator debugging
• Unique output migration, reverse function
• Highly integrated, Anti-jamming design and Hardware and Software watchdog

Technical Data
