0-750Psi Micro Compact Pressure Transmitter For Refrigerant HVAC Systems

air pressure transmitter

piezoresistive pressure sensor

محل منبع:

هفی، چین

نام تجاری:

WNK

گواهی:

CE, SGS, ISO9001

شماره مدل:

WNK80MA

تماس با ما

درخواست نقل قول

0-750Psi Micro Compact Pressure Transmitter For Refrigerant HVAC Systems

Product Details

محدوده فشار:

-1bar - 60 Mpa

خروجی:

I2C، SPI، 0.5-4.5V، 4-20ma و غیره

فشار بیش از حد:

۳ تا ۵ بار

دمای متوسط:

-40 -70

گارانتی:

1 سال

دقت:

0.25% FS، 0.5% FS 1.0% FS

حفاظت از IP:

IP65 IP67

اتصال الکتریکی:

Packard، M12x1، Mini DIN43650، دیگر

برجسته کردن:

air pressure transmitter

piezoresistive pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

5 قطعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی با ارزش دریا یا بسته بندی هوا

زمان تحویل

7-10 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

5000 عدد در ماه

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

بهترین قیمت رو بدست بیار

ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار

ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار

ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

0-750Psi Micro Air Pressure Sensor For Refrigerant HVAC Systems

Name: 0-750Psi Micro Compact Pressure Transmitter For Refrigerant HVAC Systems
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 20.00 USD
Availability: InStock

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement

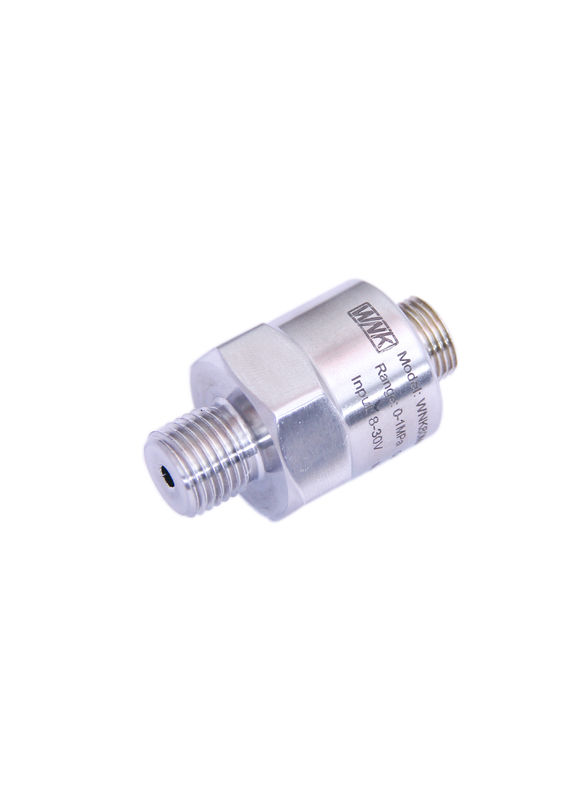

0-750Psi Micro Compact Pressure Transmitter For Refrigerant HVAC Systems 0

Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble

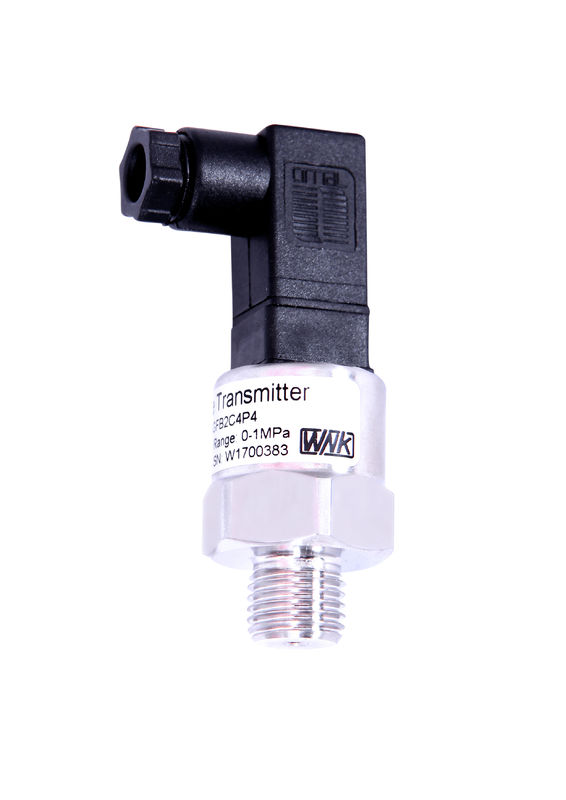

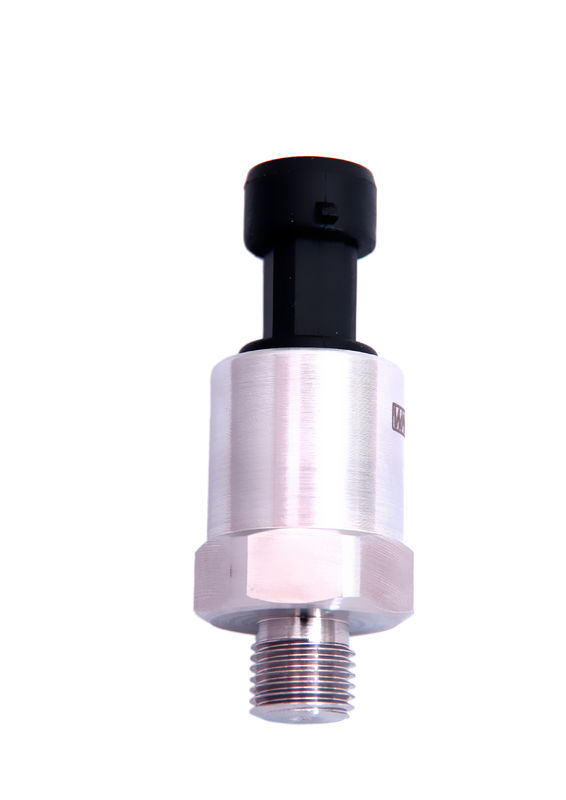

6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Technical Data

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

Company Information

Factory

Exhibition

Our Certificate

0-750Psi Micro Compact Pressure Transmitter For Refrigerant HVAC Systems 7

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
