Name: Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 20.00 USD
Availability: InStock

صفحه اصلی > محصولات > Air Pressure Sensor >

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor

air pressure transmitter

mini pressure sensor

محل منبع:

آنهویی، چین

نام تجاری:

WNK

گواهی:

ISO,Exia

شماره مدل:

WNK805

تماس با ما

درخواست نقل قول

Product Details

اندازه گیری رسانه:

مایع ، گاز و بخار

سیگنال های خروجی:

4 ~ 20mA ، 1-5V

دقت:

0.2٪، 0.25٪، 0.5٪،

محدوده فشار:

-100KPa~0، 0-10kPa، 100kPa......70MPa

کلاس حفاظت:

IP65

مصالح مسکن:

304SST، 316SST

منبع تغذیه:

10.5 ~ 30 ولت DC

برنامه:

اندازه گیری فشار

نمایش:

LED (اختیاری)

دیافراگم:

316 لیتر

برجسته کردن:

air pressure transmitter

mini pressure sensor

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3 ~ 5 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

200 مجموعه در روز

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

بهترین قیمت رو بدست بیار

ویدئو

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

بهترین قیمت رو بدست بیار

ویدئو

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

بهترین قیمت رو بدست بیار

ویدئو

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

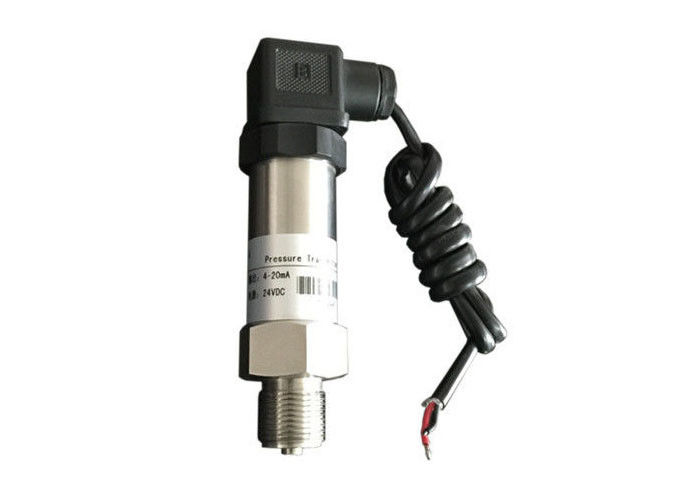

Stainless Steel 4-20mA Air Pressure Sensor for HVAC Air Compressor

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	-100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V, 0-5V, 0.5-4.5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor 0

Stainless Steel 4-20mA Gas Pressure Sensor for HVAC Air Compressor 1
