Name: 4-20mA Stainless Steel Pressure Transmitter with Hirschmann Connection
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

صفحه اصلی > محصولات > Smart Pressure Transmitter >

4-20mA Stainless Steel Pressure Transmitter with Hirschmann Connection

smart pressure sensor

digital pressure transmitter

محل منبع:

آنهویی، چین

نام تجاری:

WNK

گواهی:

ISO,Exia

شماره مدل:

WNK805

تماس با ما

درخواست نقل قول

Product Details

اندازه گیری رسانه:

مایع ، گاز و بخار

سیگنال های خروجی:

4 ~ 20 میلی آمپر، مدباس

دقت:

0.2٪

محدوده فشار:

-100kPa ~ 70MPa

کلاس حفاظت:

IP66/67

مصالح مسکن:

آلومینیوم

منبع تغذیه:

10.5 ~ 30 ولت DC

برنامه:

اندازه گیری فشار

نمایش:

LED (اختیاری)

برجسته کردن:

smart pressure sensor

digital pressure transmitter

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

بسته بندی کارتن صادراتی استاندارد

زمان تحویل

3 ~ 5 روز کاری

شرایط پرداخت

T/T، Western Union، MoneyGram

قابلیت ارائه

200 مجموعه در روز

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

بهترین قیمت رو بدست بیار

ویدئو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

بهترین قیمت رو بدست بیار

ویدئو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

بهترین قیمت رو بدست بیار

ویدئو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

بهترین قیمت رو بدست بیار

تماس با ما

هم اکنون تماس بگیرید

Product Description

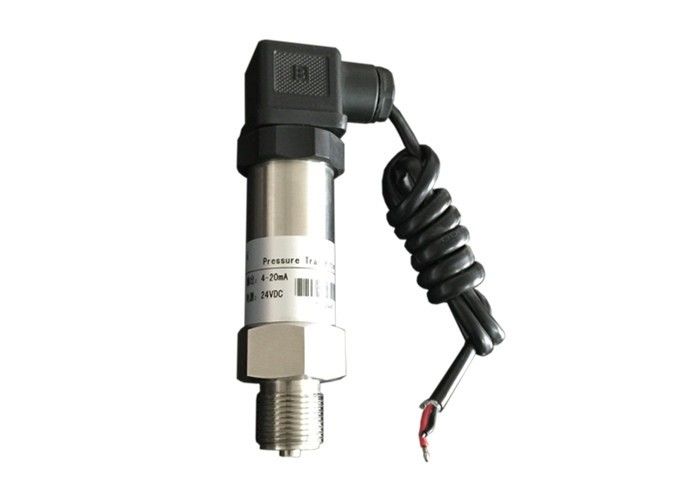

4-20mA Stainless Steel Smart Pressure Transmitter with Hirschmann Connection

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

4-20mA Stainless Steel Pressure Transmitter with Hirschmann Connection 0
