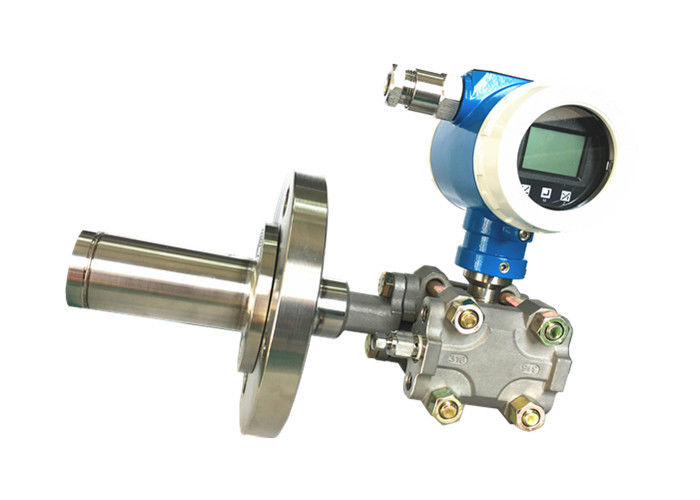

Stainless Steel Raised Face Flange Capillary Smart Pressure Level Transmitter With 4~20mA Hart Output

Stainless Steel Raised Face Flange Capillary Smart Pressure Level Transmitter With 4~20mA Hart Output

WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal. Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.

WNK offers pressure transmitters with various flanges including raised face, wafer, orifice flange, male face, female face and etc. Our WNK57 single flange and WNK58 double flange pressure level transmitters supports 4~20mA and 4~20mA +hart output. Accuracy of transmitter part without flange is 0.05%FS or 0.075%FS, suitable for various industrial applications.

Quick Information:

• Highest pressure range is 40bar;
• Output: 4~20mA, or 4~20ma+Hart;
• High accuracy up to 0.05%FS, 0.075%FS and others;
• Excellent long-term drift ≤±0.15%URL for 5 years;
• Housing material cast aluminum alloy
• Explosion Proof: Exia II CT4, Exd II CT6;
• Display LCD
• Ingress protection level IP66/67;
• Module design: Changeable electronic module;
• Flange type: raised face, wafer, orifice flange, male face, female face and etc
• Flange material: SS304, SS316
• High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
• CE, ISO9001:2015

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
